Custom IFX Library in Creo 6

  • April 6, 2021
  • 3 replies
  • 4144 views

Having an issue where my socket-head metric screw menu is blank even though the .dat file has dozens of options. There are three other screw types in my 'mm' catalog: low head, flat, and round. Those three files work fine (and are built the same as the socket head). I cannot figure out the how and why. I will include my files

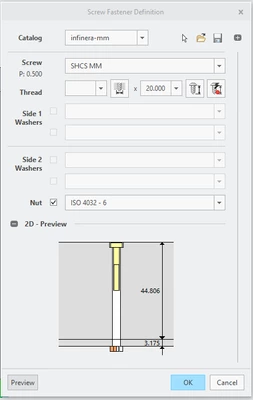

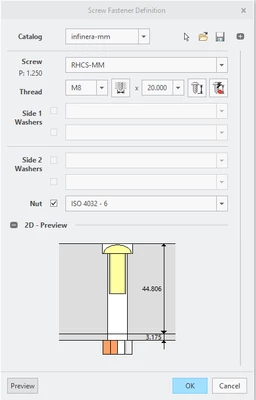

There are no options for THREAD in the SHCS-MM window. All three other sizes work/ match the .dat file.






Best answer by OliverGräbner

Hi,



there are errors inside your shcs-mm file.

You always have to separate your entries with ONE tab.




Also the extension of the fastener data file must be 'dat'.



Regards,

3 replies

M
MartinHanak24-Ruby III
24-Ruby III
April 7, 2021
@kboyle wrote:

Having an issue where my socket-head metric screw menu is blank even though the .dat file has dozens of options. There are three other screw types in my 'mm' catalog: low head, flat, and round. Those three files work fine (and are built the same as the socket head). I cannot figure out the how and why. I will include my files



There are no options for THREAD in the SHCS-MM window. All three other sizes work/ match the .dat file.






Hi,

I hope @OliverGräbner can help you.

    O
    OliverGräbner17-PeridotAnswer
    17-Peridot
    April 8, 2021

    Hi,



    there are errors inside your shcs-mm file.

    You always have to separate your entries with ONE tab.




    Also the extension of the fastener data file must be 'dat'.



    Regards,

      K
      kboyle1-VisitorAuthor
      1-Visitor
      April 8, 2021

      Oli,

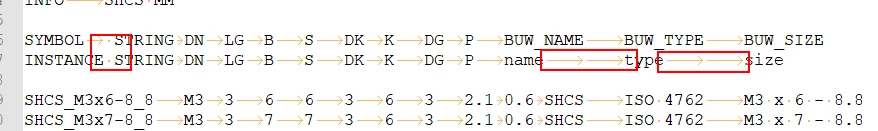

      I figured I had errors in this file but it was beyond me on how to resolve them. Thank you for the info and quick lesson! I did not realize I needed one TAB spacing. I respaced the two column headers and the file works. Such a simple fix. I know better now.

      Thank you.

      Keith
