Question

Customised Table

Forum|Forum|9 years ago
February 25, 2017
2 replies
3655 views

I have a customised table for fetching all parts all parts from model tree . But the error in the table is it does not display alphabetically / in order of the model tree. E.G:- it goes like 001,003,002. but I need it configured as in order. Can anyone help. Attached is the file.

Thanks in advance

1_customized_bom1-tbl-1.zip

2-Explorer

Hello Bhagyesh Vashi

as far as l know: Default sort "parameter" in BOM tables is weight , if nothing has been specified in SORT BY.

How to specify SORT BY parameter?

1. Create desired BOM table

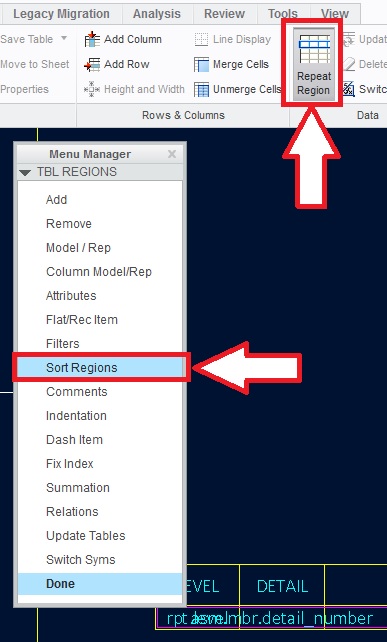

2. Go to REPEAT REGION - SORT REGIONS

3. Select desired BOM table

4. Select EDIT in pop-up menu

5. Text editor will open - here you can define SORT BY conditions

- you can speicfy more parameters

- first row is primary parameter for sorting

- second row is secondary parameter for sorting

- etc.

- if all parameters are missing, than Creo use weight for sorting

For examlpe:

&asm.mbr.pozice Forward

&asm.mbr.pro_mp_mass Forward

6. SORT BY possibilities

BACKWARD or FORWARD

-----------------

Search more info abou SORT TABLE or SORT BY PARAMETER:

Hope it can helps

Regards

1-Visitor

Is there any way you know of to do this at the format level?

When we start a new drawing, we would like the BOM to populate in order by part number.

It currently orders it by the "description"

It is a huge pain to need to organize it each time a drawing is made.

23-Emerald III

In your drawing template, set the sort order in the repeat region so it formats the way you want.

24-Ruby III

Hi,

my tip...

1.]

Start with simple repeat region ... 1 column containin asm.mbr.name

Is component order equal to model tree ? I hope so.

Check repeat region attributes setting.

2.]

Go back to your table.

Check repeat region attributes setting. Try to set it as in 1.]

MH
