Question

DATUM FEATURE SYMBOL SKEWED

  • December 20, 2024
  • 1 reply
  • 612 views

Creo 8

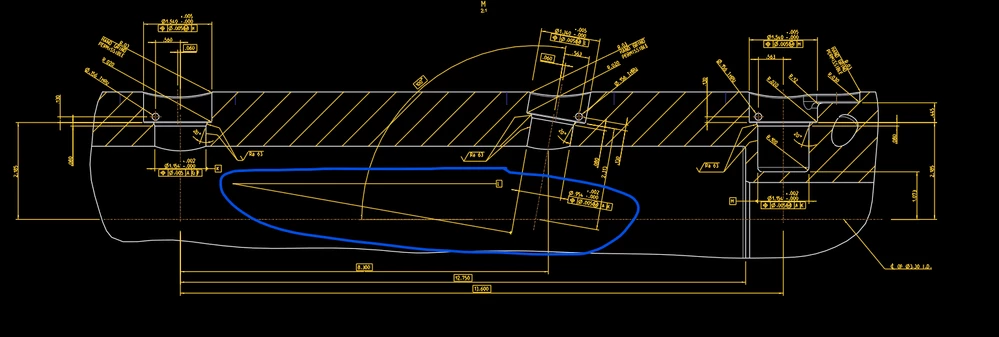

I am showing Datum Feature Symbols to my drawing that i created in the model and they are coming in skewed when the referenced feature is not vertical or horizontal in the view and i can not do anything to fix them(see screenshot). the other Datum Feature Symbols come in just fine everywhere else.Screenshot 2024-12-19 195430.png

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
December 20, 2024

Hi,

create simple model + its drawing showing the same problem. Then pack these files into zip file and upload zip file. Others users will be able to investigate your problem.

    J
    JGUERNSEY4-ParticipantAuthor
    4-Participant
    December 20, 2024

    i have tried 4 times to recreate this problem and i can't. so know i think this problem has something to do with my specific model and drawing.
