Question

Decrease file size of drawing pdf

  • August 5, 2022
  • 1 reply
  • 1048 views

I am creating a drawing of a vehicle model with components being mounted to the vehicle. So save from having the entire vehicle model in the assembly I created a skeleton to use as the base for the drawing. Once I create a pdf of the drawing, save as or export, the file size is massive at 70MB. This drawing is only four sheets with 3 views per sheet, is this a product of using the skeleton model or is there a way to make these files much smaller.

1 reply

kdirth
kdirth21-Topaz I
21-Topaz I
August 5, 2022

There are a lot of things to consider.



What is the size of the drawing?  If it is D size, the PDF is creating a 34" x 22" page, not just 8.5 x 11.  It is formatted to print clearly at the full sheet size.

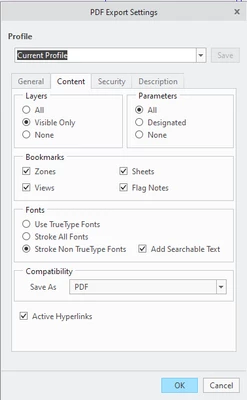

Look at the content tab.  All of the items checked add more information to the file.




There is always more to learn.
