Default hole diameter representation in Part

  • January 16, 2018
  • 1 reply
  • 5778 views

Hello



We have placed a hole into part file. It is threaded hole. Once I check dimension related to hole diameter, it is showing as Dia.14. Is there a way to change default representation for hole diameter dimension in case of threaded hole?



What we need is to have M15x1.5 (M Diameter value X Pitch Value).



Thanks and Regards

Ketan



Best answer by MartinHanak

Hi,



no such config.pro option is available. You have to use mapkey or trail file.

1 reply

J
jhaston-31-Visitor
1-Visitor
January 16, 2018

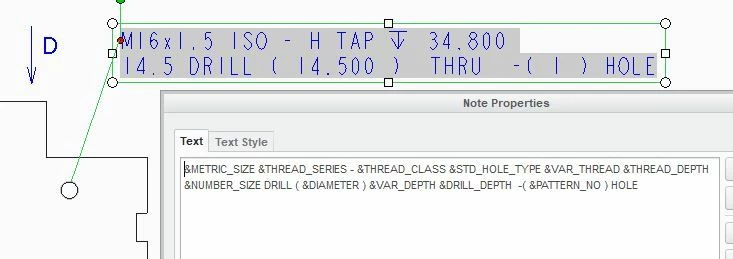

If you use a standard threaded hole from the drop-down list in Creo, M16x1.5 for example, then on the drawing sheet you can show the dimension as an annotation (Annotate > Show Model Annotations).

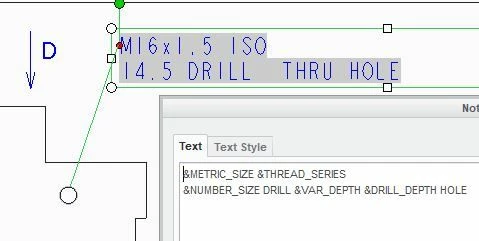

Modify the standard text to provide your required specification.






Note: M15x1.5 is not an option in this case because the Creo drop-down menu for standard threaded holes only contains ISO preferred sizes.

R
RoyCrerar1-Visitor
1-Visitor
January 16, 2018

Hi, You can create new hole tables for non-std threads if they are you're company preferred versions. It's a fair bit of work to create them but might be of benefit. Years ago I had to do just that for some special spec plugs that were being used in a complex hydraulic block. I think that you also need to make sure the file is in a suitable location to be called in. If needed I could try to remember how I did this.

    K
    Ketan_Lalcheta1-VisitorAuthor
    1-Visitor
    January 16, 2018
    Thank you for responses... We have already created customized thread series. Additionally, modification to dimension in part as well as drawing is possible but we don't want to do the same.

    What I am looking for is some specific sort of setting , if available , in creo so that placed hole's diameter dimension has required nomenclature (M15*1.5). I have already seen some users having directly default value of diameter dimension as M15.
