Deleting text on drawing from format

  • August 17, 2023
  • 3 replies
  • 2127 views

Hi All



I created some templates for drawings.

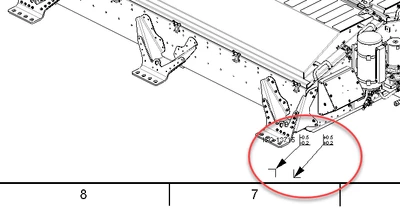

One element there is the information about the edge break.

I did that on format level because i want them to have on every drawing sheet.

anyway. there are situation, where we need to delete that. Unfortunately, this is not possible on drawing level now. is there any option how to delete it or another/better possibility to do such notes/tables/text which will be shown in every sheet of a drawing?

the tables which are on the format i can delete on drawing level, this note not..



br




    Best answer by Chris3

    In addition to what Martin said, you can create a mapkey to past that symbol / sketch /note using absolute coordinates. This would make it easier for the user to do.



    Alternatively you could put that information into a workmanship spec or a standard note on the drawing that says "this applies in the case of X,Y,Z"

    3 replies

    M
    MartinHanak24-Ruby III
    24-Ruby III
    August 17, 2023

    Hi,

    for single-sheet drawings, the solution is easy. Items that sometimes need to be deleted can simply be deleted from the format and pasted into the template.

    I can't think of simple solution for multi-sheet drawings. Of course, it is possible to create special formats without certain items.

      Chris3
      Chris321-Topaz IAnswer
      21-Topaz I
      August 17, 2023

      In addition to what Martin said, you can create a mapkey to past that symbol / sketch /note using absolute coordinates. This would make it easier for the user to do.



      Alternatively you could put that information into a workmanship spec or a standard note on the drawing that says "this applies in the case of X,Y,Z"

        C
        chshasa112-AmethystAuthor
        12-Amethyst
        August 22, 2023

        Hi



        i moved the notes to the drawing templates and using layers and mapkeys, they are shown only on the first page now. acc. to the standard, it is enough if this note is mentioned once on the drawing if it is valid for the whole drawing.
