Question

Different direction of the arrow on two identical mounting.

Hello
I recovered these two images of a gallows.

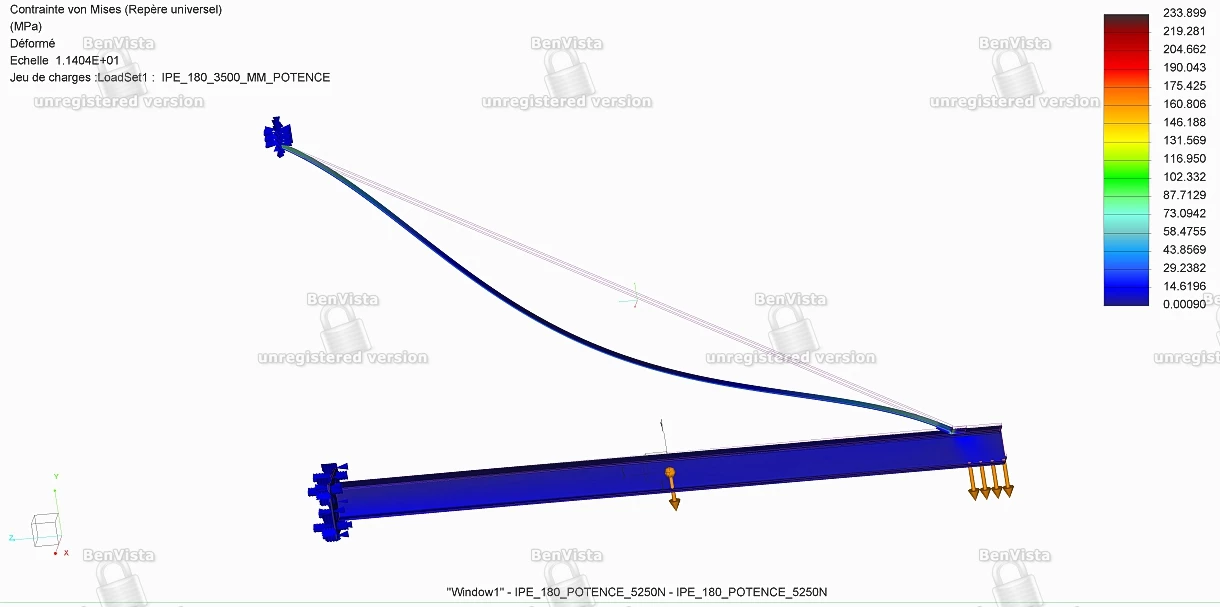

One is the stem with constraints on the truss and the flat of selected.

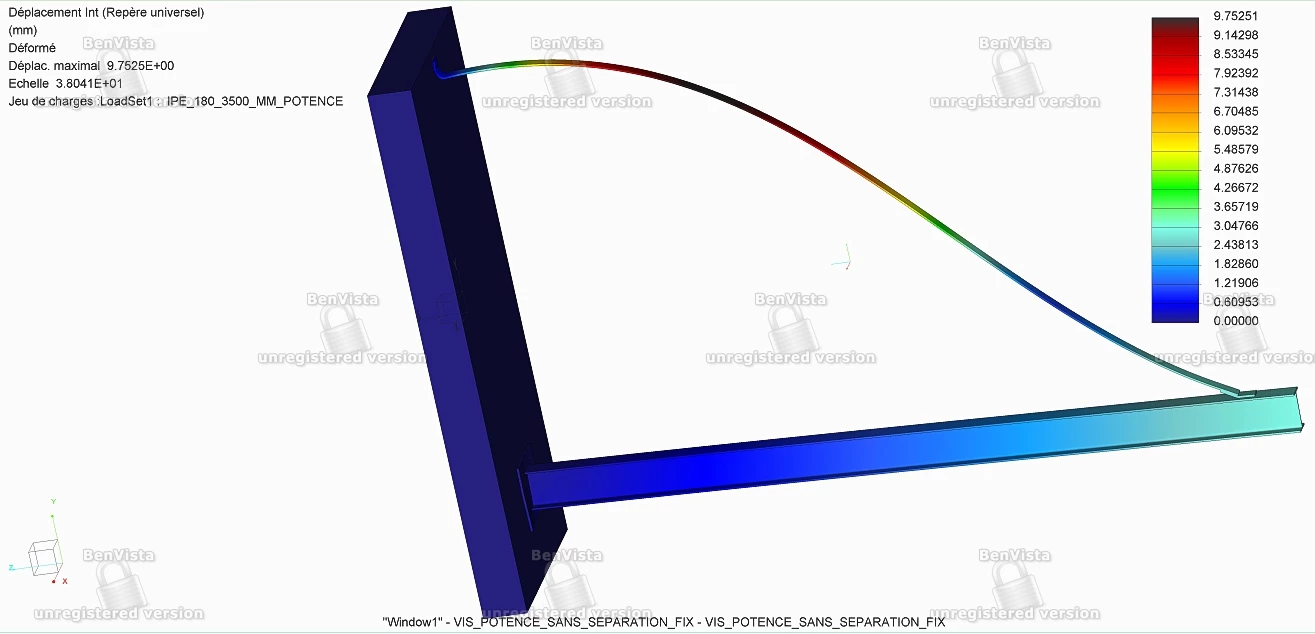

The other is the same stem but in Assembly with screws against a wall.
Load conditions are identical in both cases.
How can you explain the different form on the two flats of selected.

The first to one "negative" arrow, the other "positive".

Kind regards.
Denis
