Different shape

  • January 20, 2021
  • 2 replies
  • 1164 views

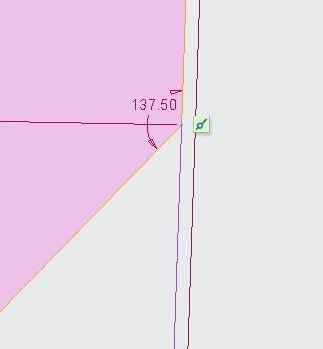

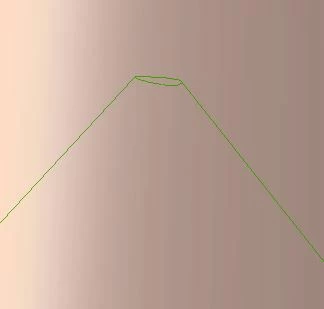

Hi guys, I did a resolve for my main body and in the sketch, I make it as a cone, as shown in the picture. But after the model is completed, it does not become a cone, instead it has a flat surface rather than a pointy shape.



Best answer by StephenW

A revolve is created by rotating about a centerline. The centerline is either a sketched centerline in your sketch or an axis that you selected from your model. If you want the cone to come to a point, the "top" of the cone needs to be exactly on the centerline.

2 replies

StephenW
StephenW23-Emerald IIIAnswer
23-Emerald III
January 20, 2021

A revolve is created by rotating about a centerline. The centerline is either a sketched centerline in your sketch or an axis that you selected from your model. If you want the cone to come to a point, the "top" of the cone needs to be exactly on the centerline.

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
January 20, 2021

@WC_9024124



You may try changing the accuracy of part.



If possible share the part to review.
