dimension line

Hello,

Is there a way to eliminate a quota line?
Let me explain better (or at least I try), when I go to quote a model in the .drw, I would like that the horizontal line of the linear dimension inside the model is not seen.

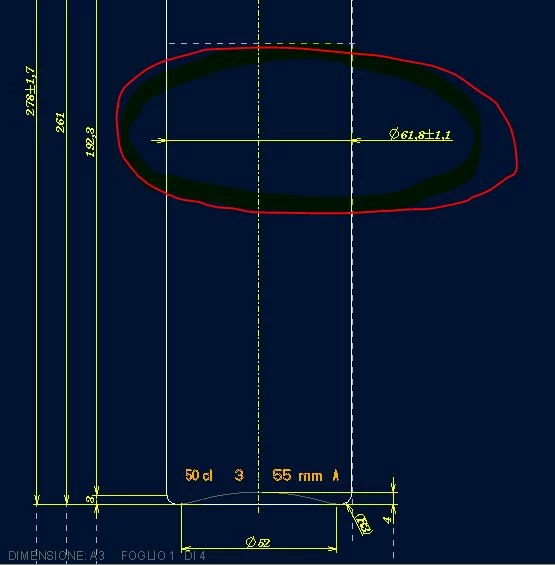

Attached an example.

Is it feasible in your opinion?

Ty,

Matteo.

MartinHanakAnswer
24-Ruby III
March 25, 2020

Hi,

In Creo 5.0 I can

  • select dimension
  • set Text Orientation = Horizontal
  • click Flip button

NOTE: dimension value is not placed above the dimensioning line because of Horizontal orientation




View in thread

2 replies

KenFarley
KenFarley21-Topaz II
21-Topaz II
March 24, 2020

If I create a diameter dimension like this, the default is to have the line between the arrows. To get rid of the line, I select the dimension, keep holding down the left mouse button so the cursor changes to the four way arrows, then click and release the right mouse button (while still holding down the left mouse button) to change the arrow method.

Translate
MartinHanak24-Ruby IIIAnswer
24-Ruby III
March 25, 2020

Hi,

In Creo 5.0 I can

  • select dimension
  • set Text Orientation = Horizontal
  • click Flip button

NOTE: dimension value is not placed above the dimensioning line because of Horizontal orientation




Translate
