Dimension Tolerance in Family Table

  • May 27, 2014
  • 2 replies
  • 4499 views

Hi,

How can I add, given dimension tolerance in the family table for respective dimensions.

Regards

Amit

Best answer by TomU

Just pick on it like any other dimension.



2 replies

T
23-Emerald IV
TomU23-Emerald IVAnswer
23-Emerald IV
May 27, 2014

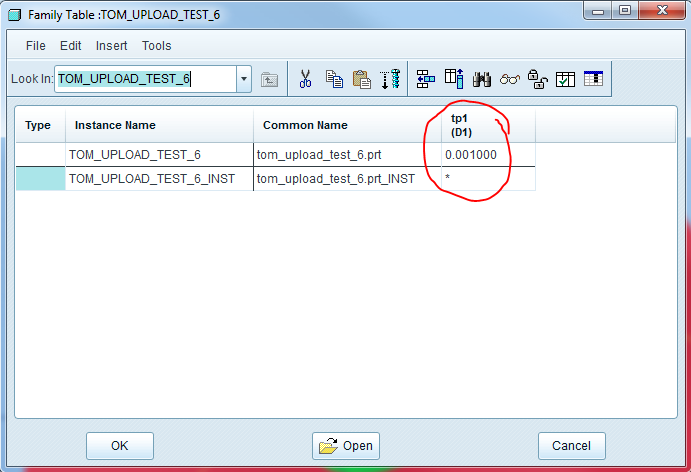

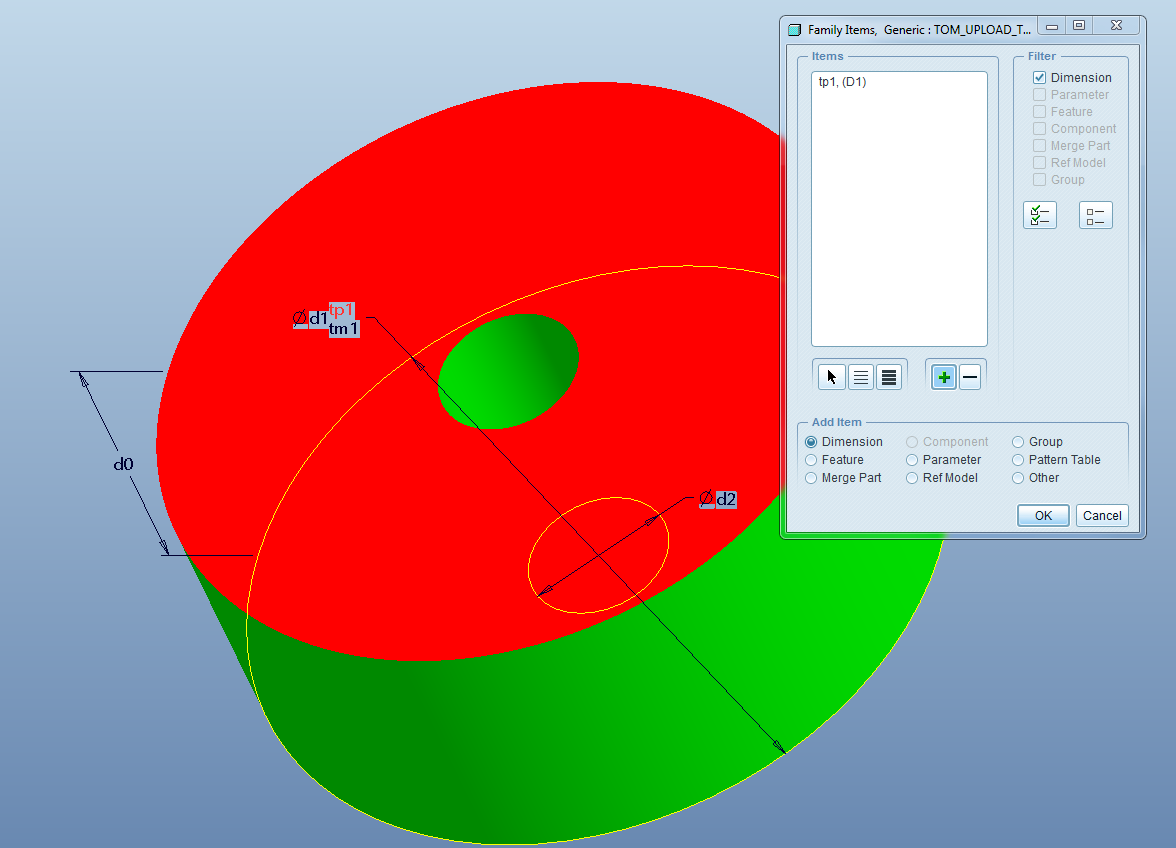

Just pick on it like any other dimension.



Patriot_1776
Patriot_177622-Sapphire II
22-Sapphire II
May 27, 2014

You can also put GTOL tolerance in there if I remember correctly. I seem to remember doing this in a family table of long, thin, parts, where there was a different straightness requirement for the different lengths.

A
amitshah1-VisitorAuthor
1-Visitor
June 2, 2014

Hi Tom,

Thanks a lot, it working for me !!

Amit
