Hello All,

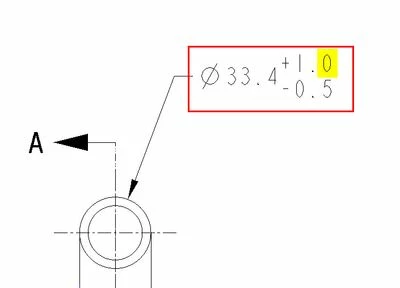

Can anyone help me to remove the trailing zero for the dimension tolerance (drawing config option)? Please refer to the below/attached image.

Reg,

Brijith








3 replies

kdirth
21-Topaz I
kdirth21-Topaz I
21-Topaz I
October 14, 2019

This is a detail option in the drawing.

File / Prepare / Drawing Properties / Detail Options

dim_tol_lead_trail_zeros

There is always more to learn.
A
AmitDeshpande18-Opal
18-Opal
October 14, 2019

Hi Brijith,



Did the detail option work for you?



Amit

B
23-Emerald III
BenLoosli23-Emerald III
23-Emerald III
October 15, 2019

In ASME Y14.5, you cannot remove it even if you turn off trailing zeros in your .dtl file. The + and - tolerances must have the same number of decimal places, unless one of the values is 0.
