Question

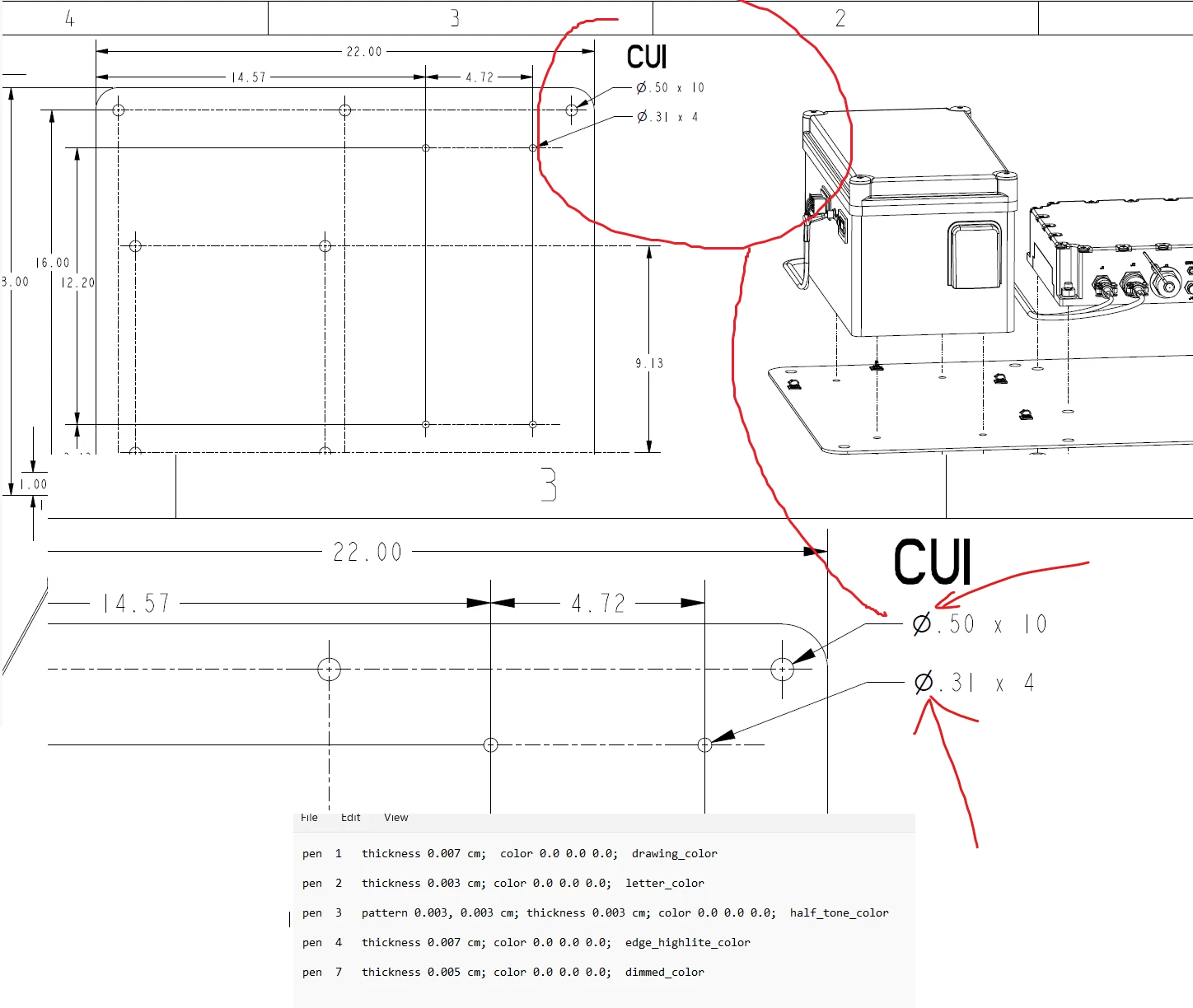

Dimensional Symbol Pen_thickness thick than all in Dwg

How to keep the symbols also consistent with other Pen_width?

SEE IMAGE Please. Thanks in advance with your solution. It looks so odd on a print.

There always something crazy challenge in Creo!

23-Emerald IV

Check this thread to see if it is the same issue that you are experiencing:

Translate

24-Ruby III

Hi,

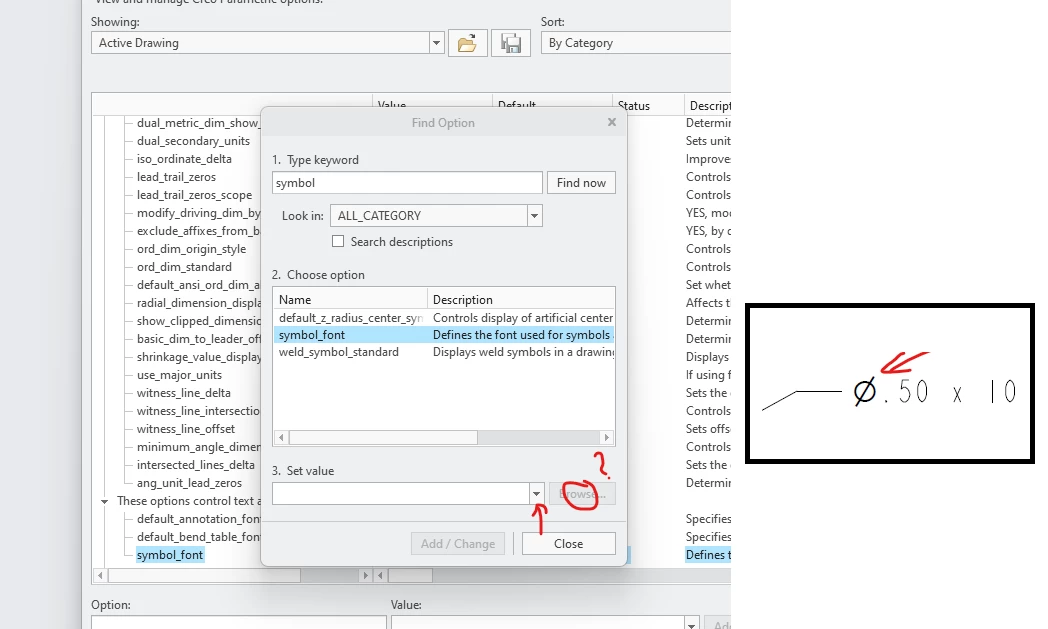

look at symbol_font detail option. It is defined in drawing and also in drawing model. In both locations it is necessary to use the same value.

Note: Test all symbol_font detail option values and set the one suitable for you.

Translate

Author

14-Alexandrite

Ohh..okay trying it now and need info on what should i browse for? i mean what file? 🙂 Image attached.

I want the symbol same as text style.

Thanks.

Translate

Yogesh

3 replies
