Hi,

I want to choose the dimension i want to set rather than changing the random dimensions that appear. How do i do this? The part is a basic curved meccano strip so i want to set the holes 1/2'' apart from each other but it's giving me the distance to the center line to change which isn't useful at all.

Could you help me please understand how the dimensioning works!

Thanks


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

I
Inoram14-Alexandrite
14-Alexandrite
January 24, 2014

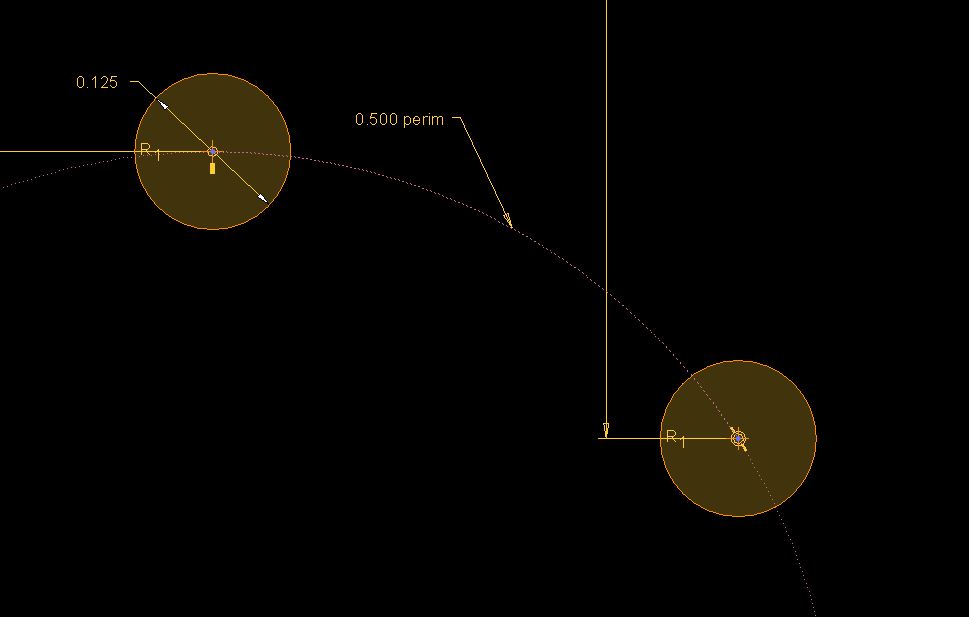

One idea, I'm not sure this is the best way though.


P
ptc-54822511-VisitorAuthor
1-Visitor
January 24, 2014

Excuse my ignorance but how did you get that? That is what i'm wanting, the curved distance between the centers of those 2 circles

T
TomD.inPDX17-Peridot
17-Peridot
January 24, 2014

Perimeter dimensions are created in sketches. You select the feature or features you want the perimeter value for and once you place the dimension, you need to select which dimension you wish to vary to meet the perimeter value.

If you are using hole features, you might make the sketch with datum points to use for locating the hole feature. Otherwise, you can simply extrude w/ remove material the holes directly where the sketch is a section instead.

P
ptc-54822511-VisitorAuthor
1-Visitor
January 24, 2014

Thanks a lot for the help Antonius and Matt. I do think i´ve tried that but i´ll try again on monday or before when i manage to download the program to my laptop.
