Dimensioning Drafts

  • August 20, 2014
  • 3 replies
  • 1614 views
Gurus,



I am trying to find a way to display draft dimensions – that makes more sense. Here is a picture of what I have:







Is there any way (without adding additional geometry) to show this dimension so that it comes from the outer-lower corner?



Michael P. Locascio


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

B
bokm96061-Visitor
1-Visitor
August 20, 2014
create as driven dim in 2d DWG? place it where/how you want it?

Or create as driven dim in 3d space then show it on your DWG (place it
where/how you want it)

Just a thought.



On Wed, Aug 20, 2014 at 9:58 AM, Michael P. Locascio <
-> wrote:

> Gurus,
>
>
>
> I am trying to find a way to display draft dimensions – that makes more
> sense. Here is a picture of what I have:
>
>
>
>
>
> Is there any way (without adding additional geometry) to show this
> dimension so that it comes from the outer-lower corner?
>
>
>
> Michael P. Locascio
>
P
PaulMailloux1-Visitor
1-Visitor
August 20, 2014

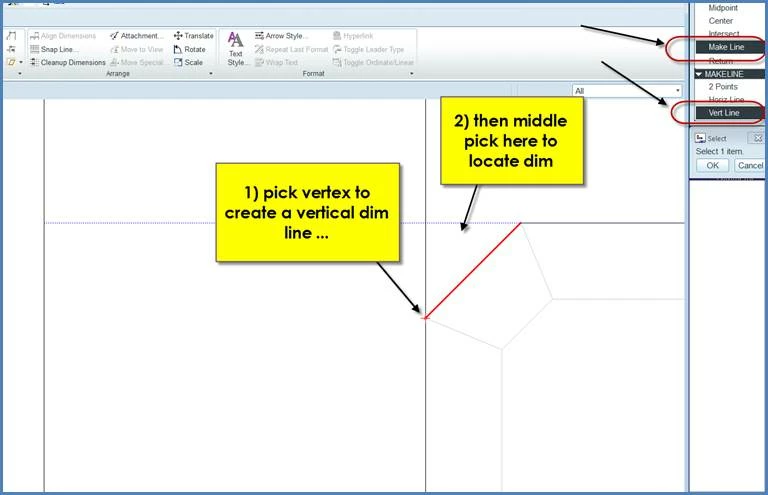

How about using the Make Line option as illustrated… no new geometry but simply referencing a vertex to create a vertical (or horizontal) reference…





Paul Mailloux ▪ Program Manager



NyproMold, Inc.

144 Pleasant St, Clinton, MA 01510 ▪ www.nypromold.com
M
mlocascio1-VisitorAuthor
1-Visitor
August 20, 2014
Paul Mailloux,



This is ok, if I were looking to add fake dimensions to a drawing. Personally I prefer to use the dimensions from the model as much as possible.



Michael P. Locascio
