Dimensioning Drafts

  • August 20, 2014
  • 52 replies
  • 81185 views
Pete Bokma,



Thank you for the suggestion. I think that what you are referring to would be A) A FAKE dimension on a drawing (if I went that way) or B) additional geometry in the model.



Please keep in mind that this draft is outbound. That may have some bearing on how it displays. Still, I would like to see a better way to display a draft dimension.



Michael P. Locascio



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

52 replies

M
mlocascio1-VisitorAuthor
1-Visitor
August 20, 2014

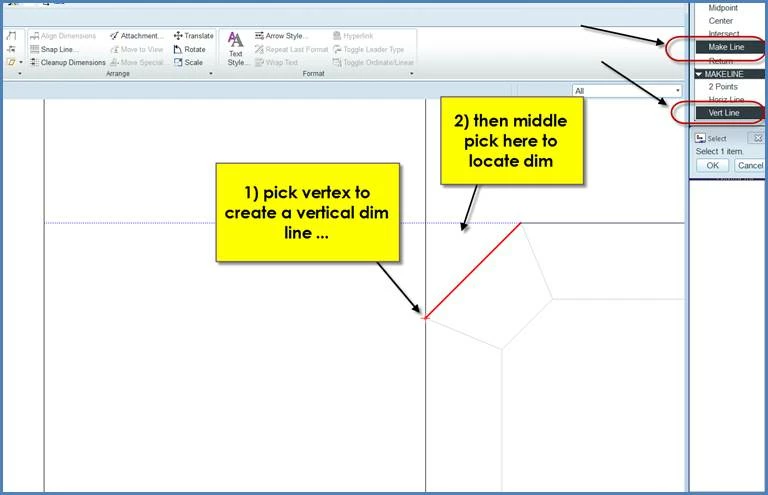

This is an option – IF I want to create dimensions. Creating dimensions is what I do – IF I cannot find any better way.



Thanks


D
DonSenchuk12-Amethyst
12-Amethyst
August 20, 2014

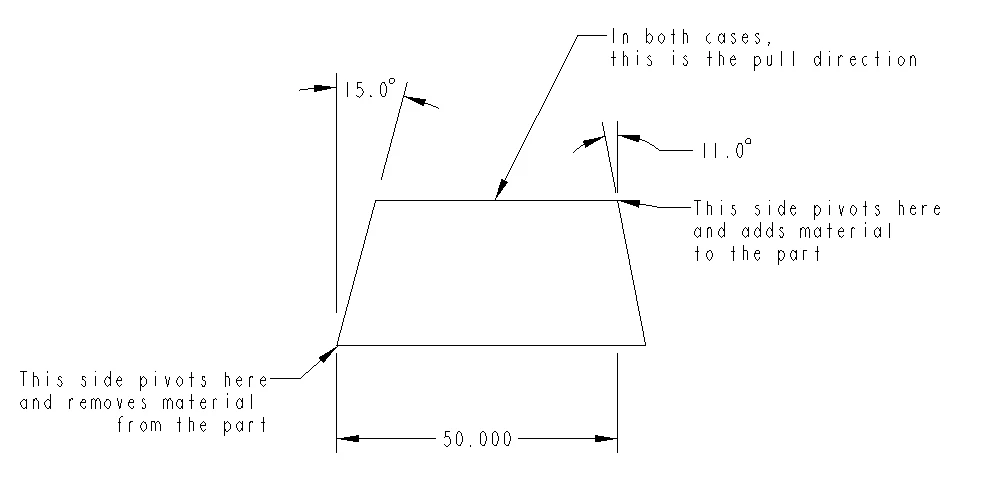

I just did a draft on a simple part and made a drawing. I couldn’t get it to show like yours.

[cid:image003.png@01CFBC7B.755EA550]


M
mlocascio1-VisitorAuthor
1-Visitor
August 20, 2014
Donald,



Is the dimension on the left an added dimension, or is it a shown dimension?



Mike L.


D
DonSenchuk12-Amethyst
12-Amethyst
August 20, 2014
Dimensions are all shown on that view.
M
mlocascio1-VisitorAuthor
1-Visitor
August 20, 2014
IN-ter-rest-STINK…..



Is there something that I am doing wrong in the feature creation? There is probably a way to show a curve as a hinge, rather than a plane.



Mike L.


D
DonSenchuk12-Amethyst
12-Amethyst
August 20, 2014
Let’s not call it “wrong”. Just different.

I’m not sure what that last bit means “show a curve as a hinge rather than a plane”. I used the edge as the hinge, nothing fancy. Or were you just thinking/typing out loud?

I’m curious if it depends upon how complex the face you’re adding the draft to is as well.
D
DonSenchuk12-Amethyst
12-Amethyst
August 20, 2014
I created a new draft around all four sides as one feature, adding material to the base part.
[cid:image004.png@01CFBC7E.12E03B20]

M
mlocascio1-VisitorAuthor
1-Visitor
August 20, 2014
Donald,



I think that we may be hitting on something rather important here. Can the hinge and the pull direction references be 2 different planes?



Mike L.


M
mlocascio1-VisitorAuthor
1-Visitor
August 20, 2014
Donald,



I selected all 4 faces around the top (or bottom) surface to draft. Then I selected the top (or bottom) surface as both hinge and pull direction.



Mike L.


D
DonSenchuk12-Amethyst
12-Amethyst
August 20, 2014
[cid:image005.png@01CFBC7E.E15355F0]
