Directional Position Tolerance

  • April 4, 2018
  • 1 reply
  • 1658 views

Hello,

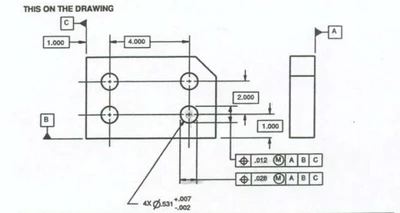

I'm looking to see if Creo (3.0) can support GD&T with a Position tolerance on a hole, representing directions of X and one for Y. With the image in this post, I'm looking to create a Size on the Hole, with two position tolerances: X and Y (or a specific direction; no diametrical zone).



This will represent a rectangular zone, rather than a diametrical zone.


    1 reply

    J
    JohnDHage10-Marble
    10-Marble
    March 5, 2025

    Hi,



    I'm working in Creo 9 and would also like to know if this feature is available or if there is a work around.
