Distance Measurement Output in Cartesian (X, Y, & Z)

Forum|Forum|13 years ago
November 15, 2012
3 replies
17485 views

I would like to get the location of a point from a Coordinate System rather than a distance.

Is there a way to get the distance to PNT0 from ASM_DEF_CSYS in

1) the X direction?

2) the Y direction?

3) the Z direction?

Other than manually measuring each one every time I do this in a model? Even setting up an analysis feature does not give this info.

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

Best answer by Kevin

Unselect the option for View Plane and you can then specify a coordinate system as the Projection Direction reference.

J

James62

1-Visitor

Creo Parametric 2.0 measurement tool can show you the X, Y and Z coords.

Seems like you are on Creo 1.0.

N

nmalik

Author

1-Visitor

Yes, I should have mentioned that. I am using Creo 1.0 Parametric M020. Good to know that its available.

K

Kevin

Answer

1-Visitor

Unselect the option for View Plane and you can then specify a coordinate system as the Projection Direction reference.

N

nmalik

Author

1-Visitor

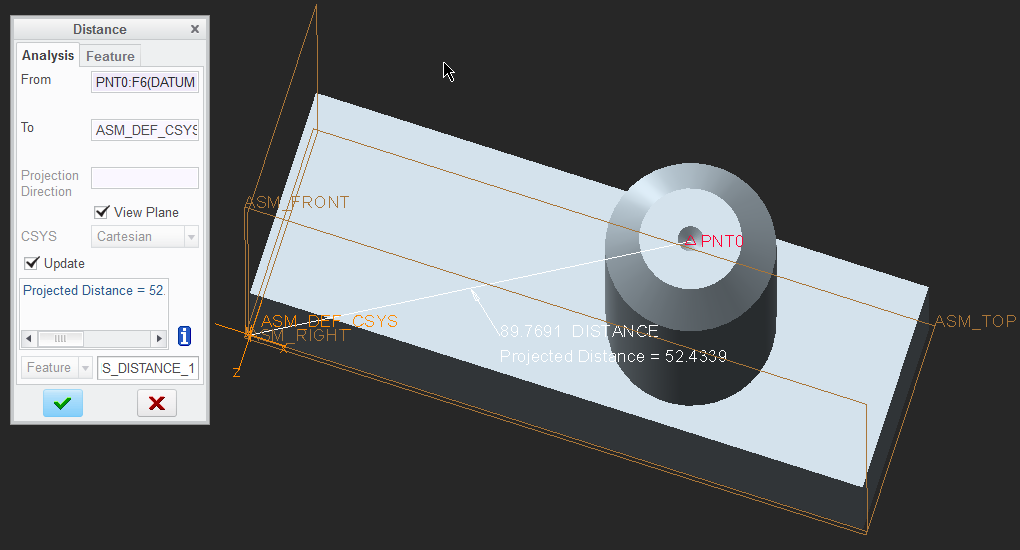

When I un-check View Plane then the Projection Direction field becomes available and the output in the box below doesn't change.

K

Kevin

1-Visitor

You need to select a coordinate system for the projection reference, in your case the DEF_CSYS. You should then see the distance value, values for dx, dy, dz, the start point x, y, z locations and the end point x, y, z locations from the Projection reference coordinate system.
