Drawing layer issue

Hello Team,



I am facing drawing layer issue in my drawing. i have hidden all the layers and isolate drawing display layers but when i try to save status, doesn't allow me and asking to check out the loverlevel assembly which is released.

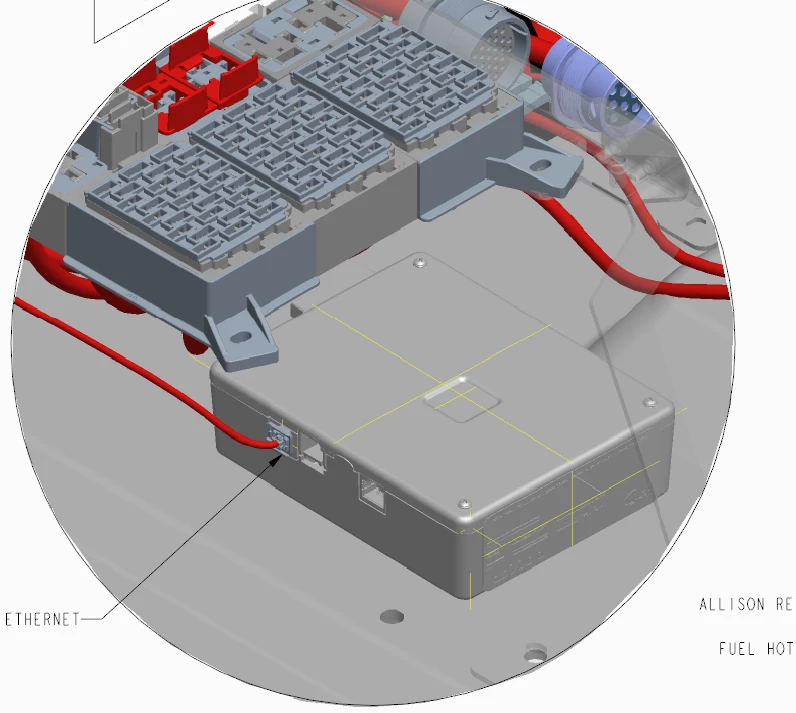

 the lower-level components are released, and layers are not hidden for axis.

can we control those layers in Creo drawing layers?

kdirth
kdirthAnswer
21-Topaz I
Feb 11, 2025 3:57 PM UTC

You need to select Yes to ignore the model status and control layers separately in the drawing.

There is always more to learn.
View in thread

4 replies

kdirth
kdirth21-Topaz I
21-Topaz I
Feb 11, 2025 3:46 PM UTC

What settings do you have for the Drawing Layer Status Control?

Here is what I have on my drawings:




Translate
There is always more to learn.
vipin_dimri6-ContributorAuthor
6-Contributor
Feb 11, 2025 3:54 PM UTC

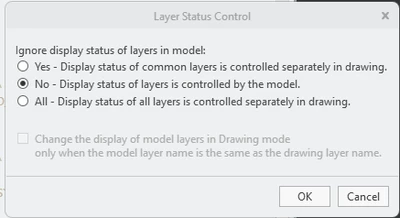

this is my current drawing layer status
