Hi. I make a section in my part and i want show in drawing. But creo showing a cut line in section view. Is there an option to disable their display?

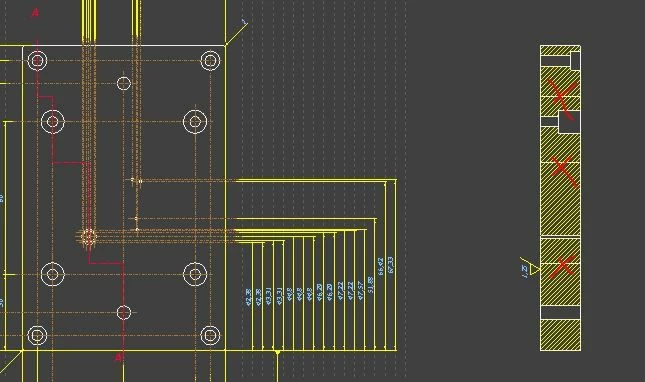

section 2.JPG

Best answer by kdirth

This is controlled by the drawing detail option show_offset_section_seams.



File>Prepare>Drawing Properties>Detail Options

1 reply

kdirth
kdirth21-Topaz IAnswer
21-Topaz I
October 14, 2022

This is controlled by the drawing detail option show_offset_section_seams.



File>Prepare>Drawing Properties>Detail Options
