Drawing shows bolt-hole pattern, but no dimension

  • August 27, 2016
  • 5 replies
  • 6916 views

New to Creo 3.0 coming most recently from NX 8.5 (fun learning curve so far!).


After a bunch of fumbling, I got my drawing to show the bolt-hole pattern with the dashed line, but I cannot get the diameter to display in the drawing for the pattern.

I made the first hole as a diameter placement, used a pattern with the degrees/qty, and have the radial_axis_pattern_circle activated.

Any help would be appreciated, thanks!


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by StephenW

I read that wrong...I agree with Roy. Verify the config option.

Also, I seem to remember if you create the pattern BEFORE applying the setting, the model doesn't update. You may need to recreate the pattern again to get it to show.

To test this, after having the option set, create another hole and pattern it. If that diameter axis shows up on the new one but not on the old one, you'll need to delete and re-create your original pattern.

5 replies

R
RoyCrerar1-Visitor
1-Visitor
August 29, 2016

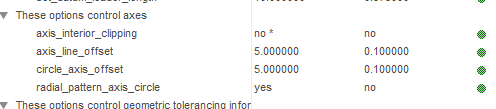

Hi, I don't understand why this wouldn't work other than the syntax of the variable is wrong. Should be radial_pattern_axis_circle set to yes.Capture-table.PNG

S
23-Emerald III
StephenW23-Emerald IIIAnswer
23-Emerald III
August 29, 2016

I read that wrong...I agree with Roy. Verify the config option.

Also, I seem to remember if you create the pattern BEFORE applying the setting, the model doesn't update. You may need to recreate the pattern again to get it to show.

To test this, after having the option set, create another hole and pattern it. If that diameter axis shows up on the new one but not on the old one, you'll need to delete and re-create your original pattern.

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
August 29, 2016

Are you SHOWING dimensions or trying to create the diameter dimension in the drawing? You can SHOW MODEL ANNOTATIONS by selecting the view to get your model dimensions to show. Oddly, you can't select the bolt circle diameter (radial axis) to create a dimension, it's one of those odd things in creo.

J
jraice1-VisitorAuthor
1-Visitor
August 29, 2016

Thanks guys, let me give it a shot. I can't remember if I set the radial_pattern_axis_circle before or after making the pattern. I am trying to do in Show Model Annotations as mentioned.

Also, once I do get it working, is there anything special needed to save this configuration so it defaults to yes? There are options in the Configuration Editor and the drawing specific options, do both save fully?

J
jraice1-VisitorAuthor
1-Visitor
August 29, 2016

. Well, I ensured the setting was on yes, then I deleted and re-performed the pattern, and not only does Show Model Annotations not show the bolt hole pattern, but the circular symbol around the diameter is gone as well.

Am I correct in dimensioning the initial hole placement as a Diameter rather than Radial?

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
August 29, 2016

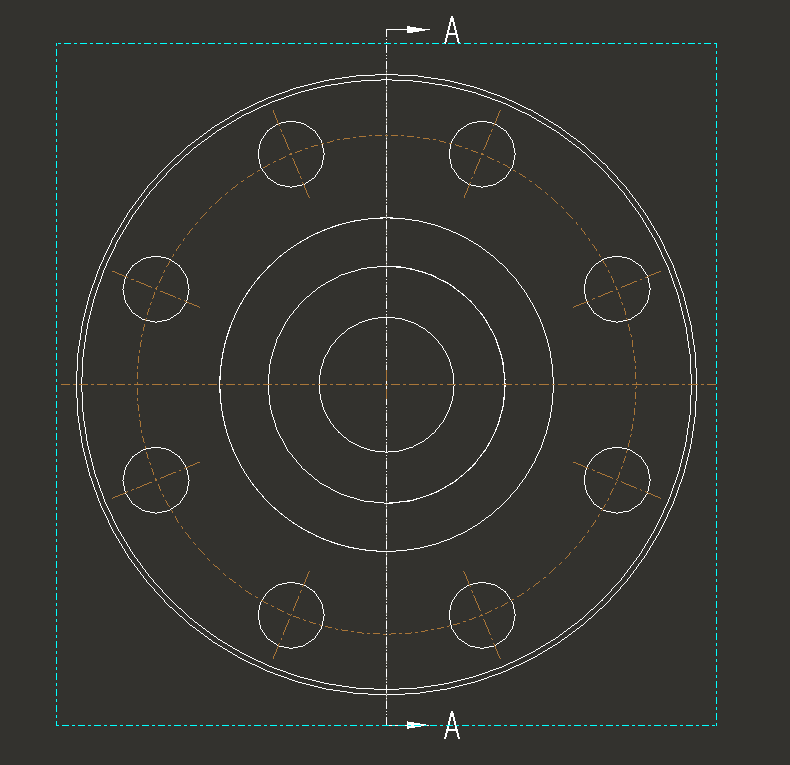

Just to be sure, you are wanting the axis to show something like this, correct?
