Drill on extruded Drawing as reference

  • November 12, 2015
  • 1 reply
  • 1139 views

Hello,

My name is Peter. I have extruded an drawing in Creo 2.0.

Now I want to drill holes beginning from another layer.

As reference for these threaded holes I want to use points of the Drawing which I extruded from.

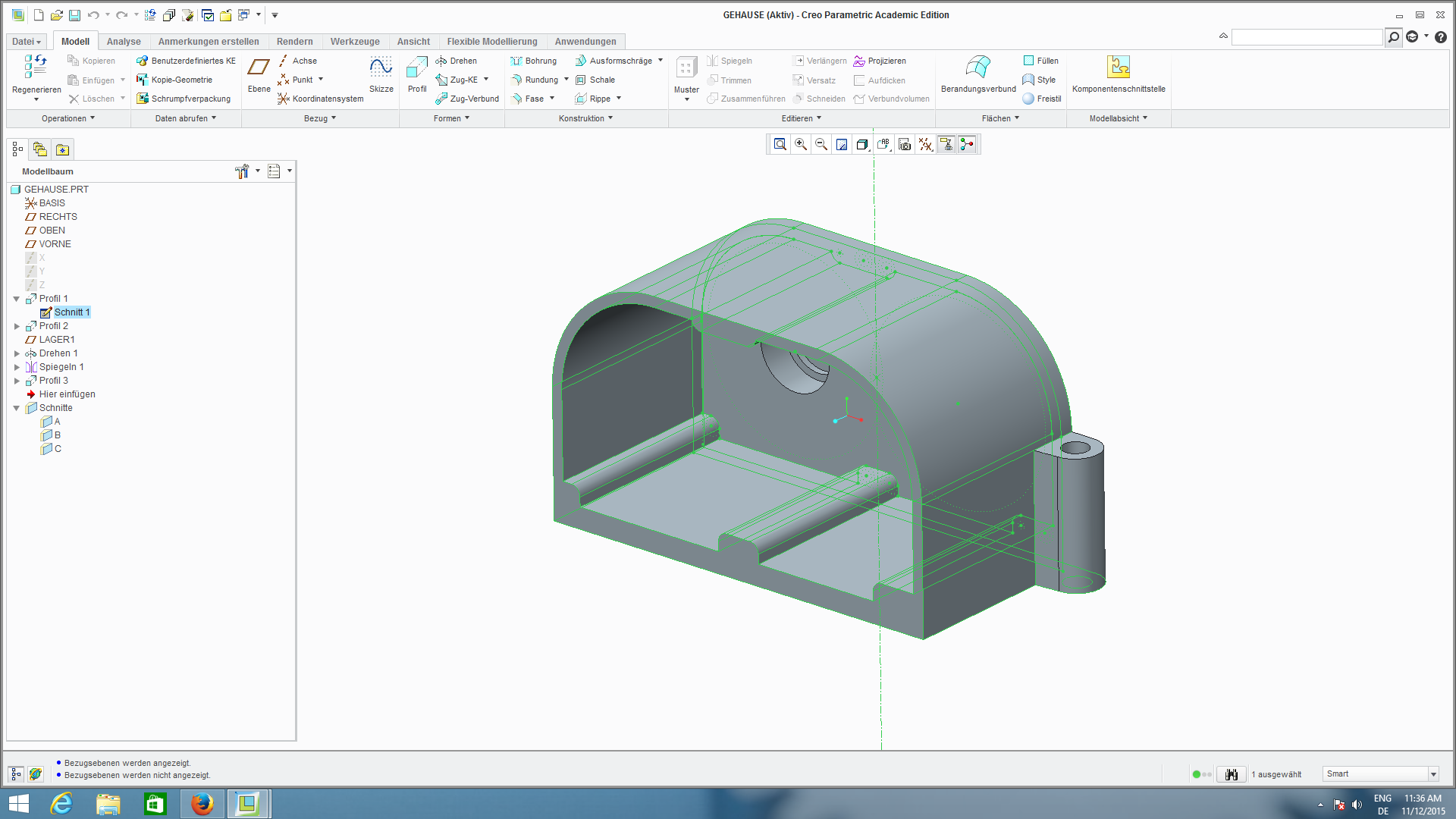

I attached a picture of the part.

I hope you can help me and thank you for your time.Problem.png


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

A
AmitDeshpande18-Opal
18-Opal
November 12, 2015

Hi Peter,

I am not sure I understand the problem you are running into.  I just tried putting a hole feature, using a datum point as a reference, and was able to do is successfully.  Please upload your model here, and I can investigate further.

Amit
