Question

Edge color in transperent components

  • January 29, 2020
  • 1 reply
  • 1253 views

Hello,

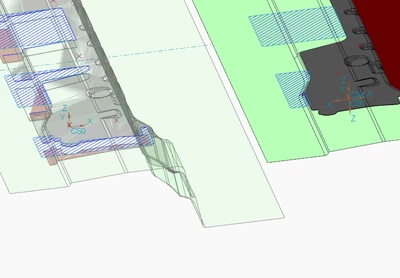

I would like to change the edge colors of my transparent components to black.






is that possible?

Is also possible to put a component transparent in some simplified reps as default? It's anoying every time I start up CREO, I need to change that in the components, that I need.



1 reply

Mahesh_Sharma
Mahesh_Sharma22-Sapphire I
22-Sapphire I
January 29, 2020

@T_F

By default, edge color for "Shaded with edges" is black.. but after applying transparency it is slightly on gray side. To have it as dark black, you can create a custom black color (for RGB 0, 0 ,0) in appearance and apply to that part, later apply other color to the surfaces of that model...

I think steps for alternate option in article CS212205 will help you.



Also, there will not be any possibility for components to place in Simp rep on the basis of transparency.

T
T_F16-PearlAuthor
16-Pearl
January 29, 2020

As always, a workaround for everything... Not a very productive task, doing this changes, for the needed parts. Hope to see this improvement implemented.
