I have created a slot on the end of the part.

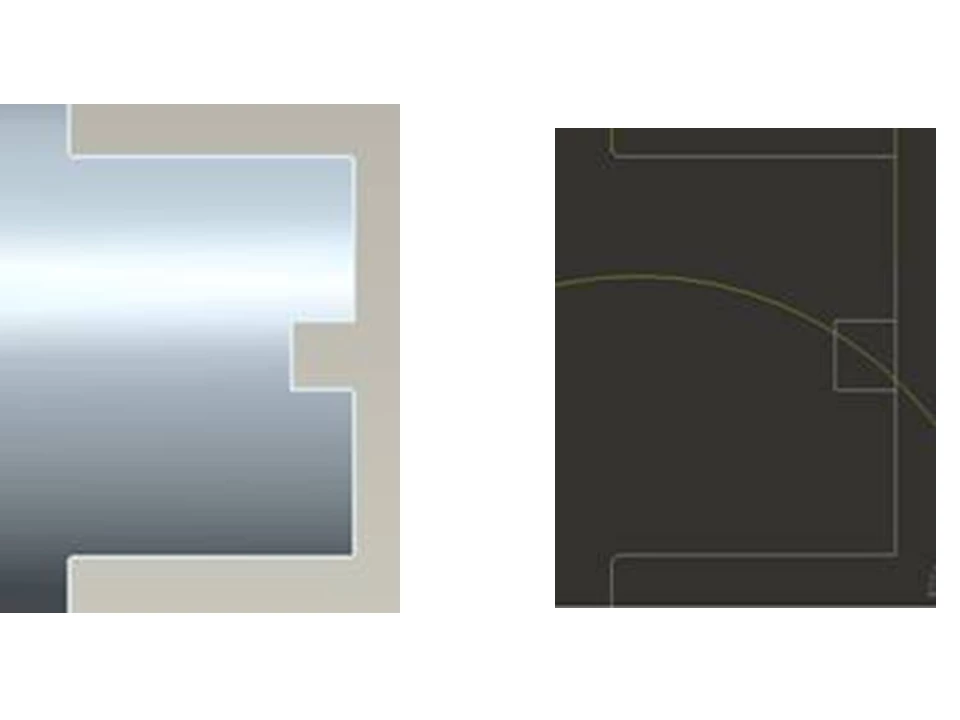

When making the detail drawing a line shows up across the slot that makes it look as if the slot is only partially throught the part.


Has anyone seen this and found a soltion?


Unit accuracy is set to .0001


Wildfire 4.0 M220



This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

SHIVAKUMARBHAND1-Visitor
1-Visitor
February 21, 2013
Hello Justin,

Please try changing the drawing option "hlr_for_threads" to "no"

Update the sheets after changing the drawing option. Thanks!

Regards,
Shiva
SHIVAKUMARBHAND1-Visitor
1-Visitor
February 21, 2013
The other possible option is make the Slot feature come first and then the Hole feature.

Regards,
Shiva
JustinSauber1-VisitorAuthor
1-Visitor
February 21, 2013

Shiva,


Thanks for the assist. Changing the order in the model tree solved my problem.
