Elliptical holes in a circular plate

  • March 15, 2023
  • 2 replies
  • 3191 views

I want to build a model of a circular plate with elliptical holes in it. The holes center coordinate and orientation data are in a .txt file. The center coordinates and orientation are random. Can I make this type of tabulated pattern in creo, please if possible help me out

Circular plate radius is - 1024 mm

Ellipse semi major - 30 mm

Ellipse semi minor - 15 mm



I have attached the .txt file . first and second column is x and y coordinate and third column is orientation of major axis from x









Best answer by tbraxton

This should be possible using sketch patterns. Creo supports sketcher csys inside a sketch that can be patterned. The center locations can be imported using an point offset csys feature.

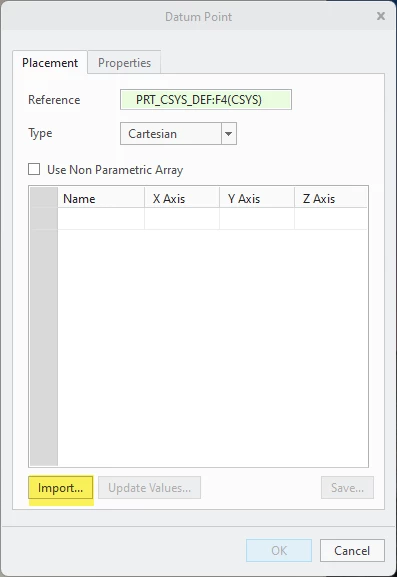

Offset datum point using import option




You can then create a pattern for the csys orientation (clocking) at each center location. See below.



Refer to this thread for reference:

https://community.ptc.com/t5/3D-Part-Assembly-Design/Is-it-possible-to-pattern-geometry-to-fit-to-csys-locations/m-p/705898

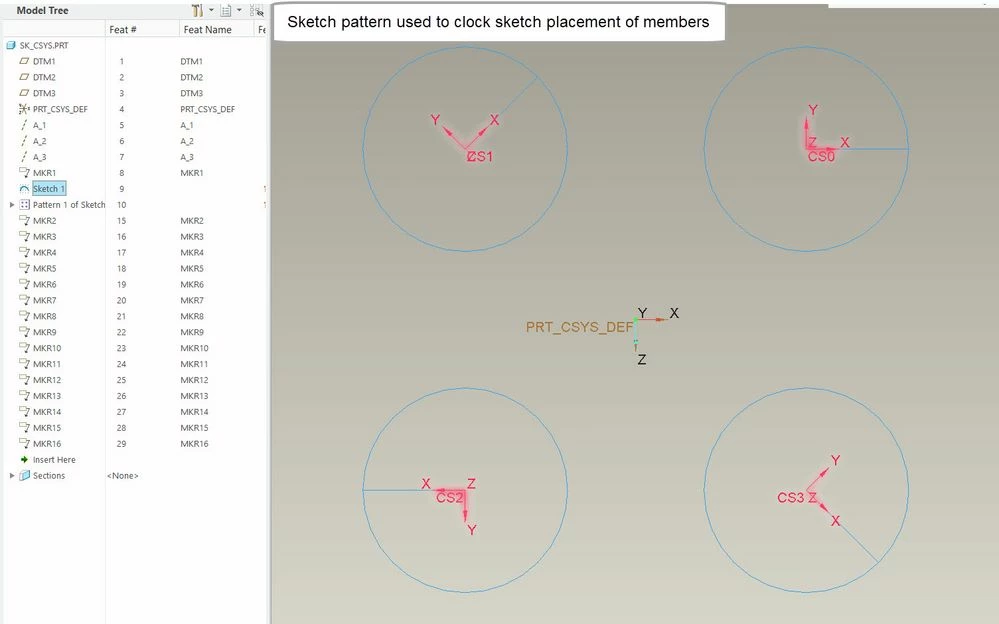

Here is a simple example of clocking the csys inside a sketch and patterning it. The part is posted for reference.



clock pattern.jpg



2 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire IIAnswer
22-Sapphire II
March 15, 2023

This should be possible using sketch patterns. Creo supports sketcher csys inside a sketch that can be patterned. The center locations can be imported using an point offset csys feature.



Offset datum point using import option




You can then create a pattern for the csys orientation (clocking) at each center location. See below.



Refer to this thread for reference:

https://community.ptc.com/t5/3D-Part-Assembly-Design/Is-it-possible-to-pattern-geometry-to-fit-to-csys-locations/m-p/705898



Here is a simple example of clocking the csys inside a sketch and patterning it. The part is posted for reference.



clock pattern.jpg



    M
    MartinHanak24-Ruby III
    24-Ruby III
    March 15, 2023

    Hi,

    1.]


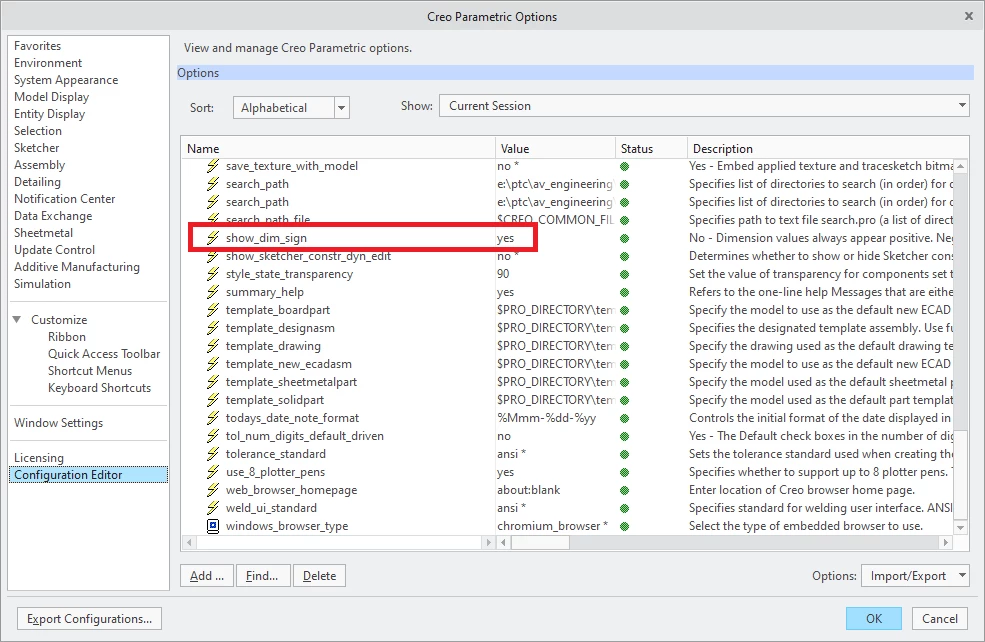

    2.]

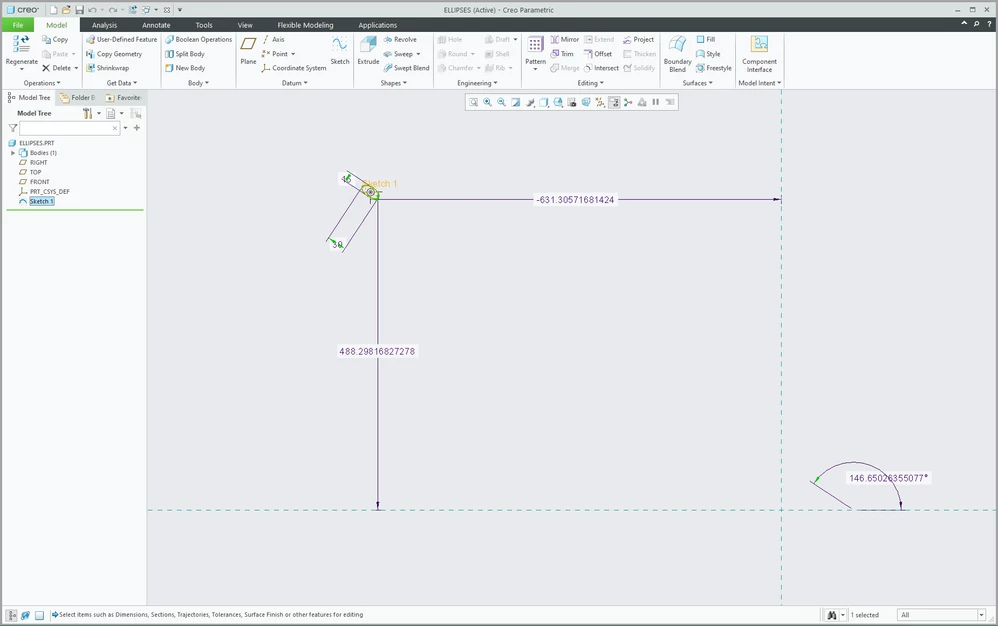

    create 1st instance


    3.]

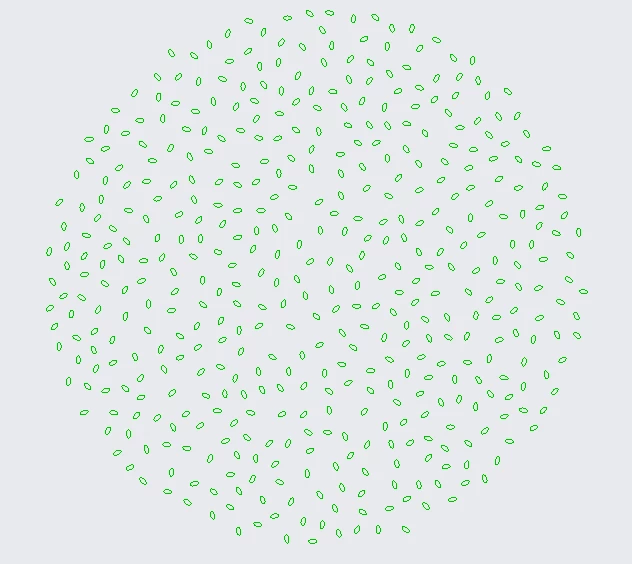

    create pattern ... see attached video



    Hopefully it is what you need...
