Enhanced Use of Cabling parameters in a drawing

  • June 2, 2015
  • 2 replies
  • 1176 views

When creating a drawing, top level cabling parameters of a component can be referenced in a drawing note so that the notes updated automatically.  What can't be referenced are the lower level parameters, such as pin/cavity information.  We would like to request that this functionality get expanded to include all of the available cabling parameters.



Group Drawing Connector Note.jpg


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

    2 replies

    JimBarrettSmith5-Regular Member
    5-Regular Member
    June 3, 2015

    Frank

    To be clear you want to extract the pin information

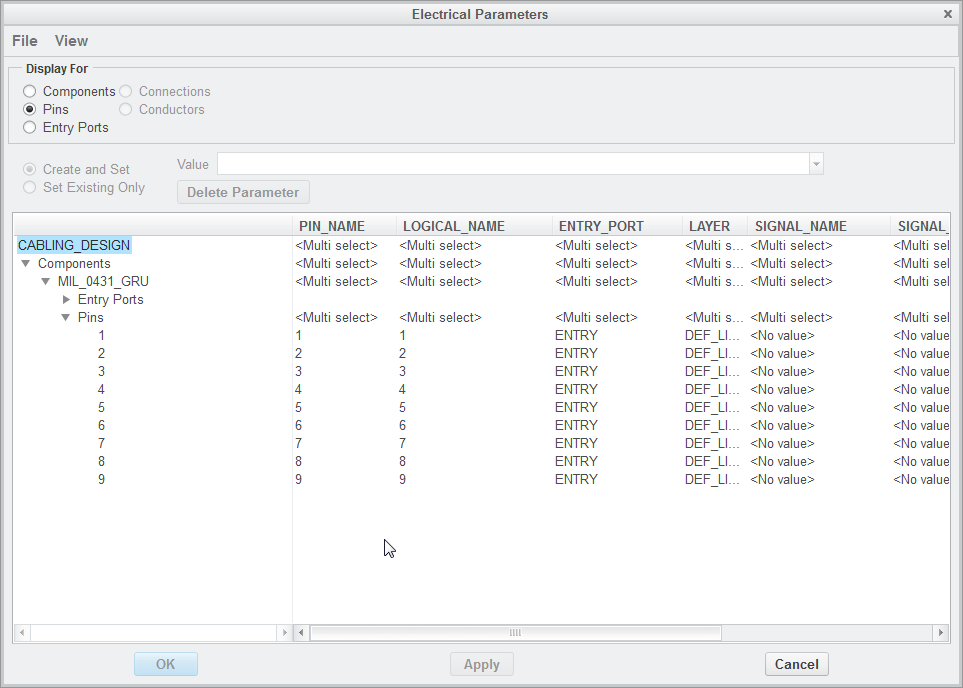

    So it would be something like $PIN_NAME:PIN_ID_1:att_conn

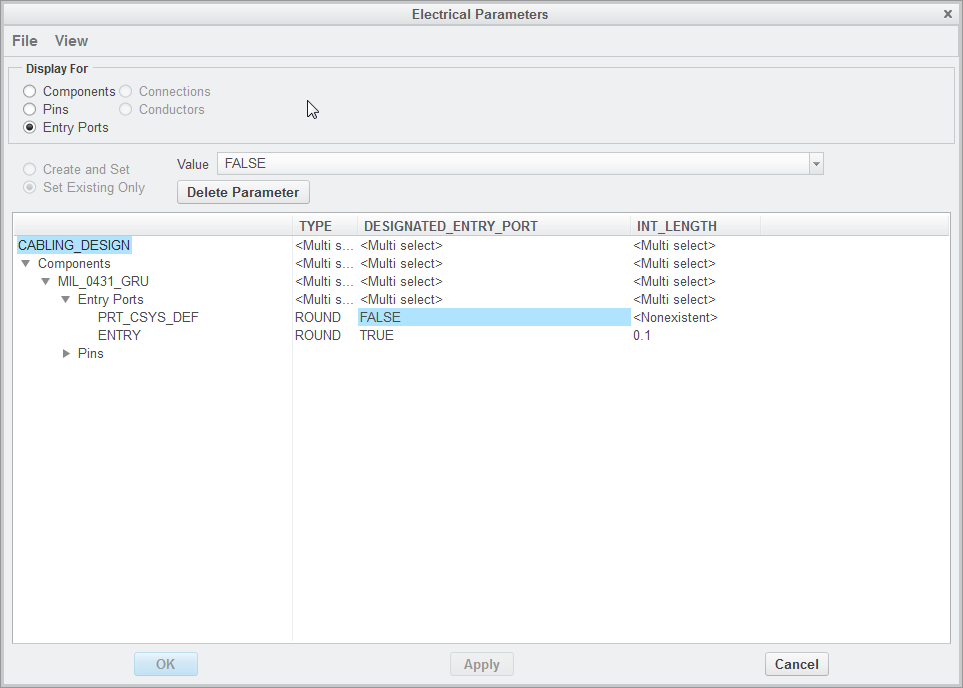

    Do you also want to extract the information from the Entry port csys


    So it would be something line $INT_LENGTH:PIN_ID_1:att_feat

    thanks Jim

    FrankMohr1-VisitorAuthor
    1-Visitor
    June 3, 2015

    Jim,

    Yes, the Pin information is more important than the Entry_Port parameters.  But if your team is in there adding the coding, why not do them all?  Also note that for the pin information leave room for tagging User defined parameters.  You know we all have them.

    Frank
