Error Message Problem

  • December 4, 2014
  • 1 reply
  • 4027 views

I am using PTC Creo Elements Direct Modeling Express 6.0, and I have a problem that I cannot seem to get around. Whenever I am in the annotation mode and try to create a drawing from the model, that is after I see the preview of what will be layed out in threee views, and select the green check mark to create the drawing, I get an error message that says "Cannot create this view because of an internal error. Action will be aborted." I get this message now matter how simple the model is, even if it only a cube or cylinder. Any help anyone could provide would be appreciated. I am using an Asus with windows 8.1, 8GB ram, I7 quad core and a G Force graphics card.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
ThomasKirkman16-Pearl
16-Pearl
December 10, 2014

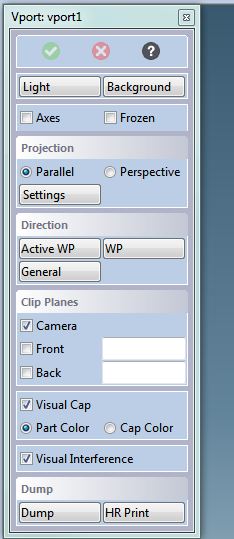

In modeling, right click and select "Viewport Properties...". Under the Projection heading make sure the Parallel is checked and not Perspective.

If perspective is checked, then Annotation will not be able to create the views and will give an error like the one you are getting.

Regards

Tom


P
ptc-67295971-VisitorAuthor
1-Visitor
December 11, 2014

Tom

I made sure the parallel is checked, but, so far the same error. No matter how simple the model, the program returns the same error when I try to produce a detalied drawing. The computer is new, and fairly strong. I can't see it being pilot error as I have used other CAD systems for years.I almost thik there should be some was of system checking the program for errors or something.

Thanks

Larry

W
whofer1-Visitor
1-Visitor
January 8, 2015

Is it opssible to upload a video what steps you do.

May be this helps to understand.

WoHo
