Export formula driven lattice to iges format

Hello,



 I created gyroid and diamond structure in Creo by Engineering -> lattice -> formula driven. Then I exported this to STL file and printed it... But now I need to do some analysys in Ansys... so I need igs format (because Ansys do not support STL to do analyses). Is the way how to convert structure from STL (or prt, where I creted this structure) to iges format ? Or how to solve this problem ? How to do analyses of minimal surfaces strucutre if I can not create solid model from them ?



Thank you for your answer and sorry for my english.  Have a nice day to all of you

7 replies

KenFarley
KenFarley21-Topaz II
21-Topaz II
Feb 3, 2021 11:42 AM UTC

You output IGES the same way you made the STL file. Open the .prt file and do File->Save As. Scroll down to IGES in the list of file types and that will make you the file you want.

Translate
MartinHanak24-Ruby III
24-Ruby III
Feb 3, 2021 3:35 PM UTC
@NN_9771247 wrote:

Hello,



 I created gyroid and diamond structure in Creo by Engineering -> lattice -> formula driven. Then I exported this to STL file and printed it... But now I need to do some analysys in Ansys... so I need igs format (because Ansys do not support STL to do analyses). Is the way how to convert structure from STL (or prt, where I creted this structure) to iges format ? Or how to solve this problem ? How to do analyses of minimal surfaces strucutre if I can not create solid model from them ?



Thank you for your answer and sorry for my english.  Have a nice day to all of you

Hi,

you can use FreeCAD.

Please read https://community.ptc.com/t5/3D-Part-Assembly-Design/Importing-stl-files-into-Creo-Parametric-3-0-and-then-converting/td-p/289180 discussion.

Translate
NN_97712471-VisitorAuthor
1-Visitor
Feb 3, 2021 4:48 PM UTC

I already tried this... But my stl format have about 4 000 000 polygons and when I want to create igs this way Freecad still crashed. I have 16GB memory ram and I think it is not enought...Is there other solution ?

Translate
MartinHanak24-Ruby III
24-Ruby III
Feb 3, 2021 7:24 PM UTC
@NN_9771247 wrote:

I already tried this... But my stl format have about 4 000 000 polygons and when I want to create igs this way Freecad still crashed. I have 16GB memory ram and I think it is not enought...Is there other solution ?

Hi,

I am sorry I do not have any other idea.

Translate
Bogdan1-Visitor
1-Visitor
Feb 8, 2021 7:09 PM UTC

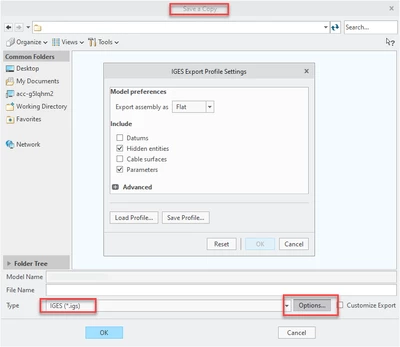

File->Save As->Save a Copy and select IGES.

You have the option to customize your export






Translate
    GN_105440321-Visitor
    1-Visitor
    Jan 4, 2023 1:06 PM UTC

    Hi

    I have the same issue and I need help. Coulde you find a solution?

    Translate
    AndreasVlahinos4-Participant
    4-Participant
    Jul 30, 2023 5:23 PM UTC

    The Gyroids, Diamond, etc. are voxel-based geometry and they can not be exported to neutral file formats such as STEP IGES Parasolids etc.

    You have two options:

    1_ Use CREO Simulation Live.  It understands voxel-based geometry and you can do Structural, Modal, Thermal, and CFD analyses. In the CFD you can compute velocities, pressure distributions, and pressure drop but you can not yet conjugate heat transfer.  It is amazing fast.  Use the highest fidelity level and include internal bodies on the setup.

    2 Export the STL and import it in ANSYS Discovery.  You can set up the boundary conditions using named selection in design & explore modes.  You can go to Refine mode if you want to go to ANSYS Mechanical Workbench or Fluent.



    I hope that helps



    Dr. Andreas Vlahinos
