Fill the void of a complex solid

  • June 4, 2020
  • 1 reply
  • 1659 views

Hello everyone,

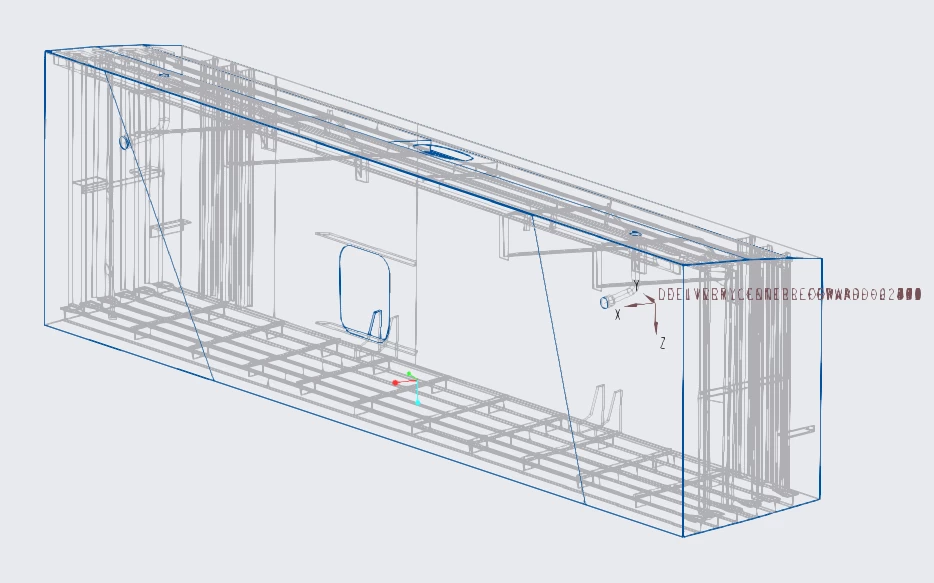

I need to find the geometry that fill a complex solid (see image below).Capture.PNG

Anyone knows which is the propper methodology?



Thank you.

1 reply

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
June 4, 2020

Copy the surfaces of the inside wall of the solid. Fill holes as required to close the quilt. Using the seed/bound selection can greatly speed up selection of the surfaces.



Once you have a closed quilt you can solidify it. If you have other solids that would subtract from this envelope then use the merge/cut out functionality to remove those elements.
