Filling BOM with Coordinate System Info

  • January 29, 2025
  • 1 reply
  • 877 views

Hello,



I am running Creo 10.0.4.0. I am trying to figure out if there's a way to populate a BOM in a drawing with the information of a coordinate system.

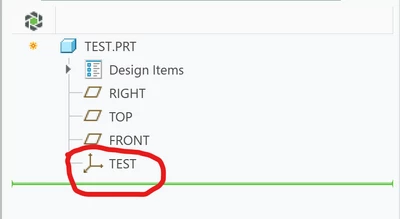

For example, I would like to populate the below BOM with the coordinate system information from the below part so "TEST" would then appear in the "COORDINATE SYSTEM" column.



I have tried asm->mbr->User Defined -> coordinatesystem, coordinate_system, coordinate system, and origin. Perhaps there is another keyword to reference that line item? Or perhaps another selection from the region that is not asm->mbr?









Thanks in advance

Best answer by MikeBennett

Hi @ND_9973975



Is there any specific information you wanted to extract?  Your attempts suggest that you have a model parameter in TEST.prt named coordinatesystem, coordinate_system, coordinate system, and origin.

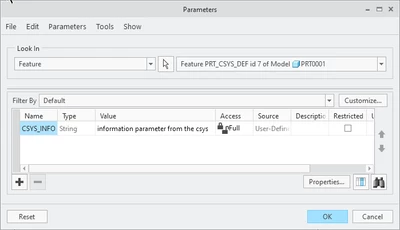

If you create a feature level parameter (let's call it CSYS_INFO,

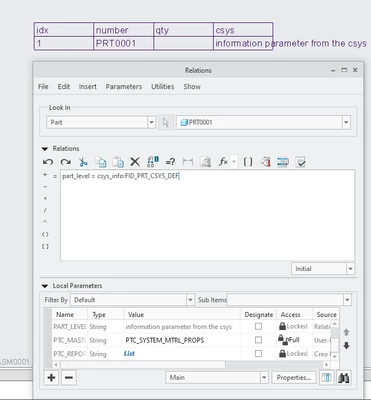

You can use a part relation to add it as a part parameter, PART_LEVEL=CSYS_INFO:FID_TEST  (here, TEST is the feature name of your circled coordinate system feature.

Then, your repeat region could call out asm.mbr.User Defined where the user defined parameter is  PART_LEVEL









1 reply

M
MikeBennett16-PearlAnswer
16-Pearl
January 29, 2025

Hi @ND_9973975



Is there any specific information you wanted to extract?  Your attempts suggest that you have a model parameter in TEST.prt named coordinatesystem, coordinate_system, coordinate system, and origin.



If you create a feature level parameter (let's call it CSYS_INFO,

You can use a part relation to add it as a part parameter, PART_LEVEL=CSYS_INFO:FID_TEST  (here, TEST is the feature name of your circled coordinate system feature.

Then, your repeat region could call out asm.mbr.User Defined where the user defined parameter is  PART_LEVEL









    N
    ND_99739751-VisitorAuthor
    1-Visitor
    January 29, 2025

    Hi Mike,



    Thanks for your quick reply. Forgive me if I misunderstood your solution but I am more so looking to pull the direct name from the main coordinate system into the BOM. The reason being, if you import a part from let's say McMaster, it will import and update that part's coordinate system to its McMaster number e.g. 545991. I would like to have that number upon import then be able to be read by and updated into a BOM without having to actually enter that 545991 number anywhere else.

    S
    23-Emerald III
    StephenW23-Emerald III
    23-Emerald III
    January 29, 2025

    In a repeat region, when you used asm mb user-defined, it's basically telling the repeat to go look at each component for the specific "user definied" parameter you specified. So when you said you were trying " coordinatesystem, coordinate_system, coordinate system, and origin", Mike was thinking you had defined a parameter with those names.

    We use a parameter in our parts/assys called "descprition". This is something we added to our start part/start assembly that a user has to update the value manually to get it to fill in as desired.

    There is no "auto-magic" way to get a feature name, such a coordinate system name, directly in a repeat region like you are asking.

    Mike has come up with a way to get the info, but you will have to add parameters and relations to your parts/assemblies.
