Find complete edge length of sheetmetal part..

  • January 24, 2012
  • 5 replies
  • 1665 views

I thought there once was a way to get the edge length of a cross section. I am trying to figure out the cut time for a laser machine and currently we are measuring edge loops on all features.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

5 replies

mdebower18-Opal
18-Opal
January 24, 2012
We use the following set of equations to do this automatically.

-marc


/*Set S_THK equal to sheet metal thickness. Use system parameter, not SMT. Keeps relationship working if SMT is not defined.
S_THK = smt_thickness()

/*Set S_MPA equal to system parameter area
S_MPA = pro_mp_area

/*Set S_MPV equal to system parameter volume
S_MPV = pro_mp_volume

/*Calculate burn length for laser.
S_LBL = (S_MPA - 2 * (S_MPV / S_THK)) / S_THK


mdebower18-Opal
18-Opal
January 24, 2012
Oh, the part has to be flattened for this to be accurate. Forgot that lil' bit...
BobSchwerdlin1-Visitor
1-Visitor
January 24, 2012
I would create a datum curve intersecting the part (use datum plane?) and then use Analysis, measure, curve length.
DanMcCaherty1-Visitor
1-Visitor
January 24, 2012

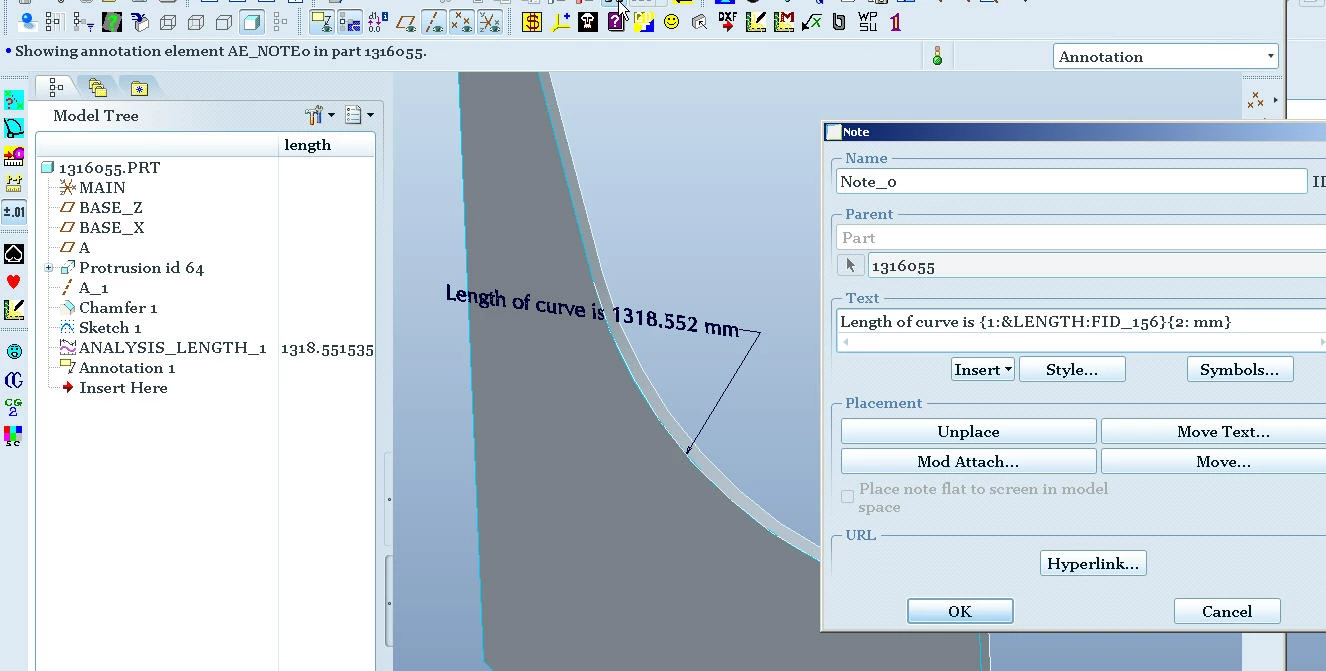

In addition to the easy tip Bob S recommends, you can also add an analysis feature that records the length of that curve and show that length in your Model Tree. You could also add an annotation that refers to that dimension (see the attached screen grab image).

merrill.rosenow1-Visitor
1-Visitor
January 25, 2012

There is another, and very useful way.


Create a distance or length feature using the distance or length analysis (named Feature_Name in the following example). Select the feature option instead of the quick option from the pull down menu. Create a parameter with the nameof the dimension you'd like to use (Parameter_Name in the following example). Set up a relation such that:


Parameter_Name=distance:fid_Feature_Name


For a length, type length instead of distance. Also be that :fid_is used between distance/length and the feature name. You can now put this parameter in your drawings, which will dynamically update as you change the model. You can also add this parameter to a family table to display the lengths for various sizes. Please note that this feature is sensitive to its location on the model tree, and if you are measuring the cut size between two flats that is not inserted into the flat state it will fail.
