flat pattern from helical sweep (simple archimedes screw)

  • January 29, 2018
  • 2 replies
  • 5141 views

Hi,

I need to create a flat pattern from a simple helical flat screw. Can anybody help?!

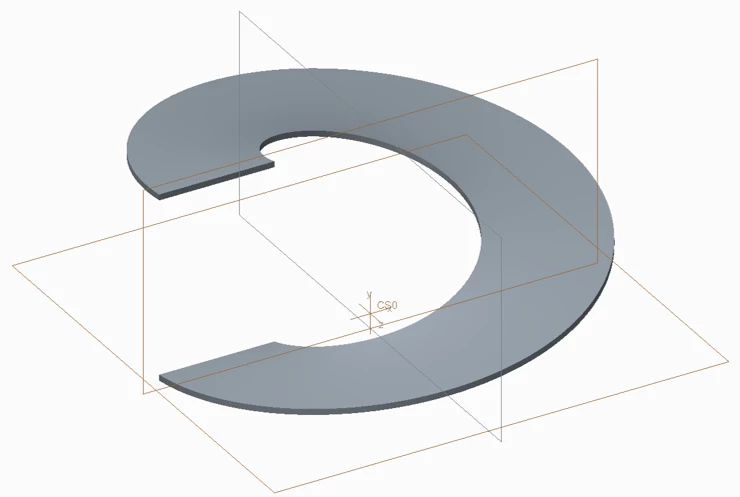

I use creo parametric 2.0 including sheetmetal.screwblade-3d.png

2 replies

S
23-Emerald III
StephenW23-Emerald III
23-Emerald III
January 29, 2018

Sheetmetal won't help you here. Sheetmetal will give you flat patterns for press brake operations with a straight bends. Your part requires tooling.



You should look in the surface flatten. Maybe something like this: https://community.ptc.com/t5/Creo-Modeling-Questions/Flatten/m-p/361522#M91385

K
KenFarley21-Topaz II
21-Topaz II
January 29, 2018

Exactly what you said. I had to make a surface exactly like this to build a dust collection cyclone, and the only way to get a flat pattern was to use the surface flattening. It worked out pretty well, too. I'd imagine it would also be possible to create the flat pattern using equations, too.

B
BHOoi16-Pearl
16-Pearl
January 30, 2018

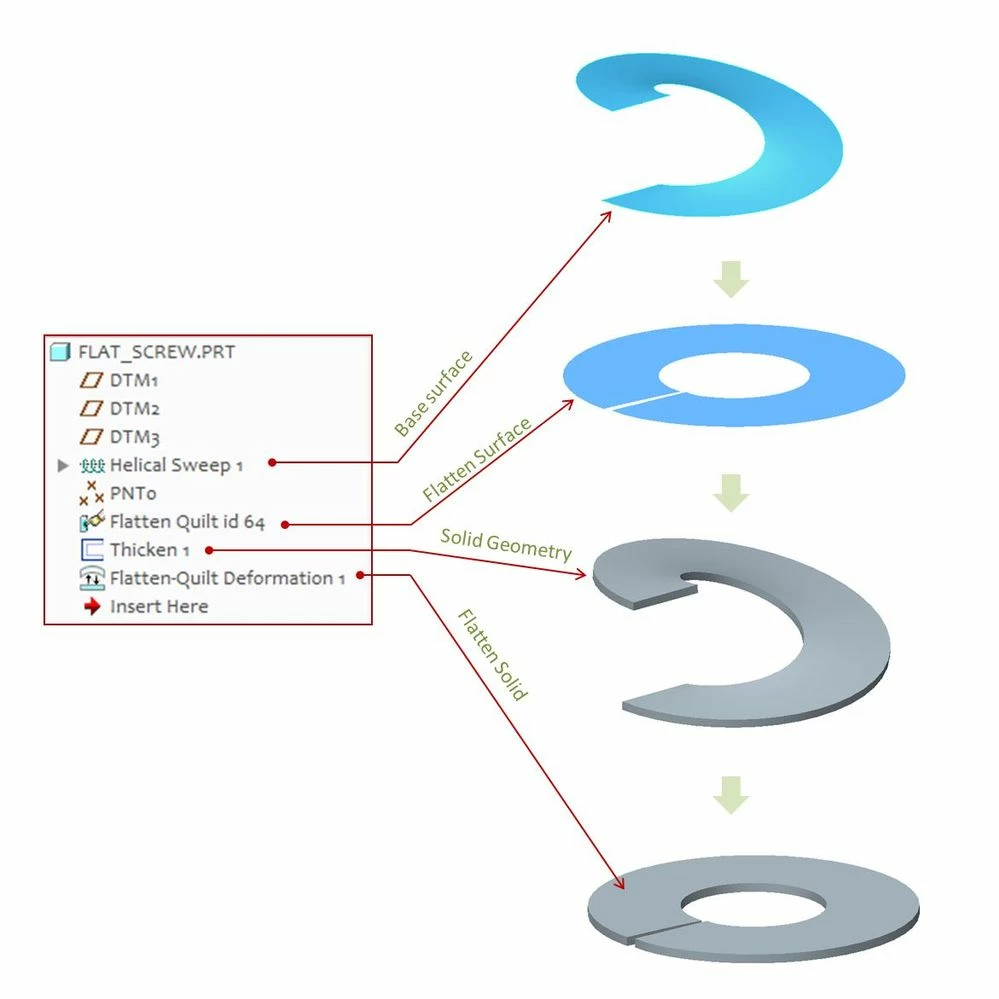

The best way to illustrate is by example. See the attached files, creo2 file included. ThanksCapture.JPG

R
RonaldKetel1-VisitorAuthor
1-Visitor
January 30, 2018

Thanks for your example.

I thought that the flat would be an open ring shape, meaning that both outer and inner curves would be arcs, with a certain radius. However the curves appeared to be (sort of) ellipses. Can that be the case or did something go wrong in the definition of the flatten quilt operation?

Thanks.

B
BHOoi16-Pearl
16-Pearl
January 31, 2018

In that example, I modeled the helical shape with 360 deg turn. The inner/outer perimeter length is thus definitely more that  the perimeter of a planar circle with a same diameter. When the helical shape is flatten, it won't be a circular to preserve its true/same length ! Makes sense?

I have changed the same example so the helical sweep is below 360 and you can see the flatten shape is almost circular. Note that the flatten geometry won't be a true circular shape as it is in fact a project/wrap geometry, i.e. spline more likely. Hope this helps.
