Flexible offset is changing chamfer dimensions with 0.00 Dimension entry.

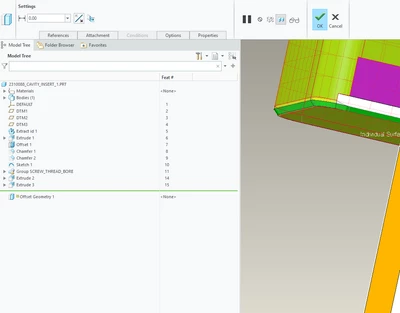

Flexible offset is changing the chamfer dimension from 0.50 to 0.30 with 0.00 offset. this should not happen.

I am using Creo 7.










4 replies

Chris3
Chris321-Topaz I
21-Topaz I
Oct 4, 2023 12:58 PM UTC

I would suggest you open up a ticket with PTC and have them review your part.

Translate
tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Oct 4, 2023 2:56 PM UTC

Upload the problem part here. This will enable users to investigate the problem, a screenshot is not sufficient on this case to determine root cause.

Translate
Abhinand14-AlexandriteAuthor
14-Alexandrite
Oct 9, 2023 10:22 AM UTC

Hai,



please refer attached model. On further study I understand that rearranging the chamfer may help to avoid this issue. but still, this should not happen.

Translate
tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Oct 9, 2023 3:56 PM UTC

It looks like a quick fix is to reorder the offset feature as shown in the video below. There may be a limitation with the algorithm causing the issue you have noted, I would suggest creating a support call with PTC and ask them to clarify the behavior. When you get an answer, please add it to this thread.



(view in My Videos)

Translate
