Flexible Zip Tie

  • July 21, 2020
  • 2 replies
  • 2393 views

Does anyone have a flexible zip tie model they are willing to share?  Both for usage in a design, but also so I can break apart the different aspects to model other simple flexible parts.

Thanks in advance!

2 replies

J
jbob12-Amethyst
12-Amethyst
July 22, 2020

Check out the Spinal Bend feature. A zip tie would be a perfect example for this feature.

kdirth
kdirth21-Topaz I
21-Topaz I
July 22, 2020

I don't have one I can share, but it is easy to make.

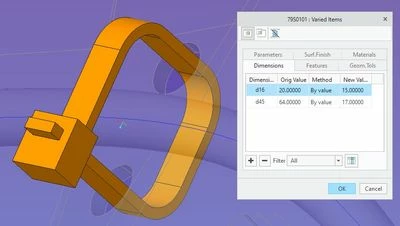

Model a zip tie in the installed state.  In the model properties (File/Prepare/Model Properties), under Tools select change for Flexible.  Select the body of the zip tie then the dimensions that need to be varied then OK.  Select OK for the Flexibility dialog box to complete and close Model Properties.



When you assemble the model into an assembly you will be prompted to accept use of flexibility.  You can now change the values that you predefined.




There is always more to learn.
    P
    Pettersson15-Moonstone
    15-Moonstone
    August 4, 2020

    I have one on my other computer. I'll see if I can remember to post it tonight (European time). It uses Spinal Bend and Make Flexible, and also a Perimeter Dimension to keep the length constant.
