I am on CREO 7.0.12.0 and I want to know if there is a button or a mapkey to 'flip normal view' 180 degrees? Sometimes it happens that I make a section and want to look at it, so I have made a shortcut button for "Normal to" but it goes to the wrong half where I don't see the section I made.

In SolidWorks I can just press the normal to button/shortcut again and it will flip me to the other side immediately. But in CREO it doesn't do anything.

Is there a way to flip normal views automatically?

Best answer by kdirth

If you are looking to spin the model 180°, here is the text of a mapkey using F3:



mapkey $F3 @MAPKEY_LABELRotate View 180 Degrees;\
mapkey(continued) ~ Command `ProCmdViewOrient` ;~ Select `orient` `SetupOptions`1 `dynorient`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox`180.000000 ;~ Activate `orient` `OkPB`;

3 replies

tbraxton
22-Sapphire II
tbraxton22-Sapphire II
22-Sapphire II
January 23, 2025

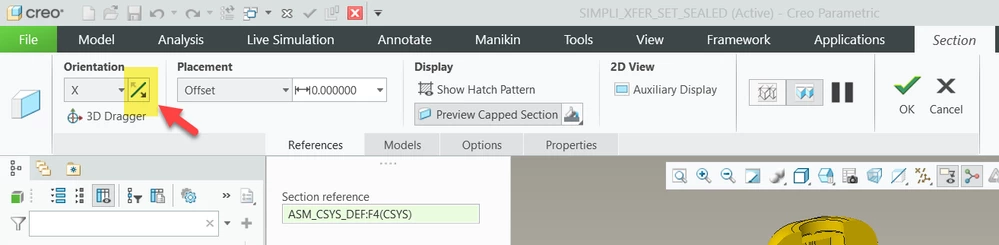

Creo has a button to flip the view direction for a cross section. In the section creation UI use this button to flip the direction.






M
MikeBennett16-Pearl
16-Pearl
January 24, 2025

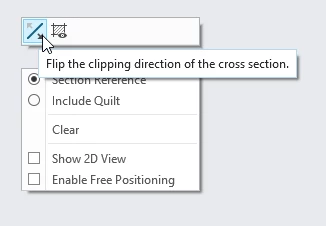

This button is also the first icon in the Mini Toolbar when defining the section.




kdirth
21-Topaz I
kdirth21-Topaz IAnswer
21-Topaz I
January 24, 2025

If you are looking to spin the model 180°, here is the text of a mapkey using F3:



mapkey $F3 @MAPKEY_LABELRotate View 180 Degrees;\
mapkey(continued) ~ Command `ProCmdViewOrient` ;~ Select `orient` `SetupOptions`1 `dynorient`;\
mapkey(continued) ~ Update `orient` `spinPH.YSpinBox`180.000000 ;~ Activate `orient` `OkPB`;

There is always more to learn.
    S
    Shumayal11-GarnetAuthor
    11-Garnet
    January 31, 2025

    Thank you @kdirth this is what I was looking for.
    Is there also an option to selected edges from section view? Kind of like how solid works has a "Graphics view" section and a non graphics view? I ask because I need to measure distances sometimes and I love the way how Solidworks gives the measurements fast and easily in 3D with different colours. I would love to be able to measure easily and fast in the same way in CREO too.

    I know I can do the 'project' view plane but I was looking for an easier option.

    Catalina
    CatalinaCommunity Manager
    Community Moderator
    January 31, 2025

    Hi @Shumayal,

    I wanted to see if you got the help you needed.

    If so, please mark the appropriate reply as the Accepted Solution or please feel free to detail in a reply what has helped you and mark it as the Accepted Solution. It will help other members who may have the same question.
    Please note that industry experts also review the replies and may eventually accept one of them as solution on your behalf.

    Of course, if you have more to share on your issue, please pursue the conversation.

    Thanks,

    Catalina | PTC Community Moderator
