Solved

Framework three profile connection

  • April 28, 2021
  • 1 reply
  • 2404 views

Hi guys,

I am trying to start using the framework extension with Creo 7.
I am building a simple frame where there are 4 profiles connected together for the frame's top and 4 legs connected at corners.

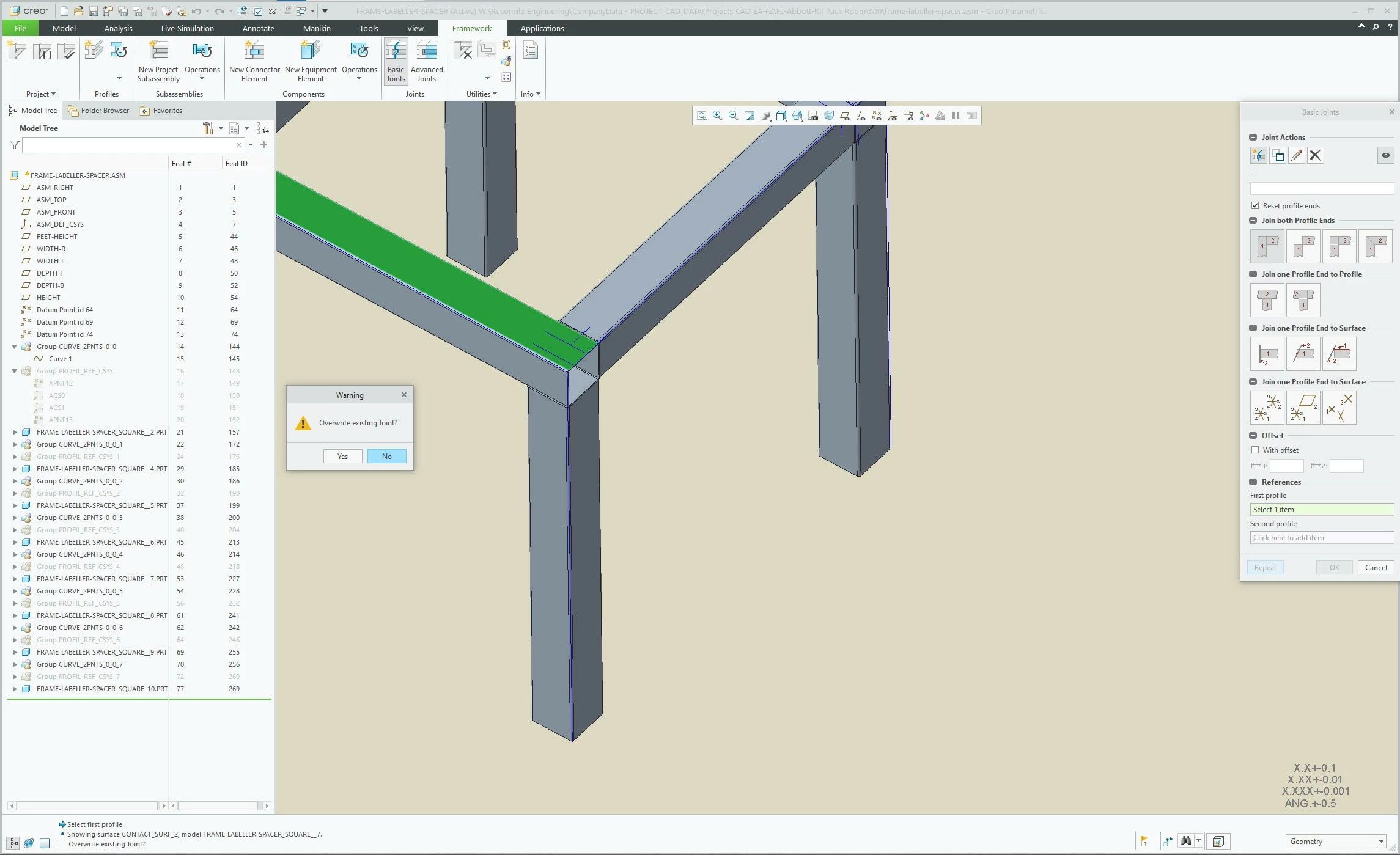

I am able to do joints for the top but when I try to connect the top with legs I get error message asking me Overwrite existing join? No matter what I do I am unable to connect this profile with existing joint to another profile to the leg.

I watched some YT videos and there presenters are able to do what I want. What could I be doing wrong?

Thank you.

Best answer by mvitárius

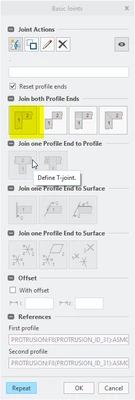

Use this for the two on the top:

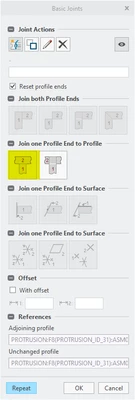

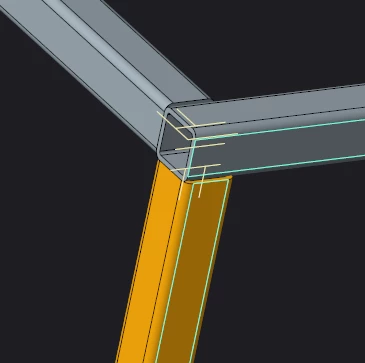

This for the leg:


At least, this is the way I have been doing this.






1 reply

M
mvitárius15-MoonstoneAnswer
15-Moonstone
April 29, 2021

Use this for the two on the top:






This for the leg:


At least, this is the way I have been doing this.






    R
    rmuller10-MarbleAuthor
    10-Marble
    April 29, 2021

    Thank you. That works perfectly.
