GD & T profile tolerance

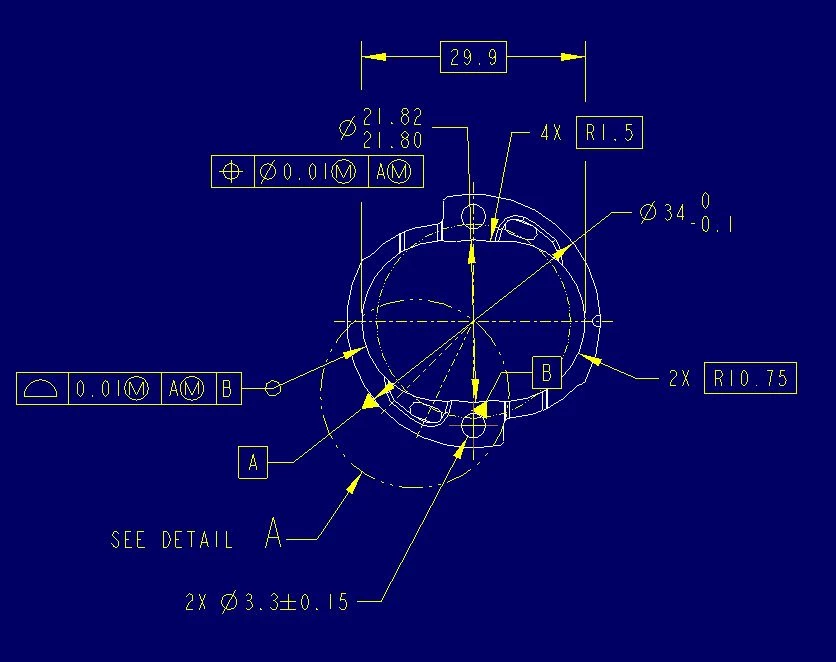

Please see the attached.

With using the profile tolerance as shown. Should the 21.82/ 21.80 diameter be shown as a basic dimension of 21.81 without the true position?
