GD&T True Position Tolerance Appearance In Model and Drawing

  • March 12, 2020
  • 5 replies
  • 2463 views

Hi everyone,

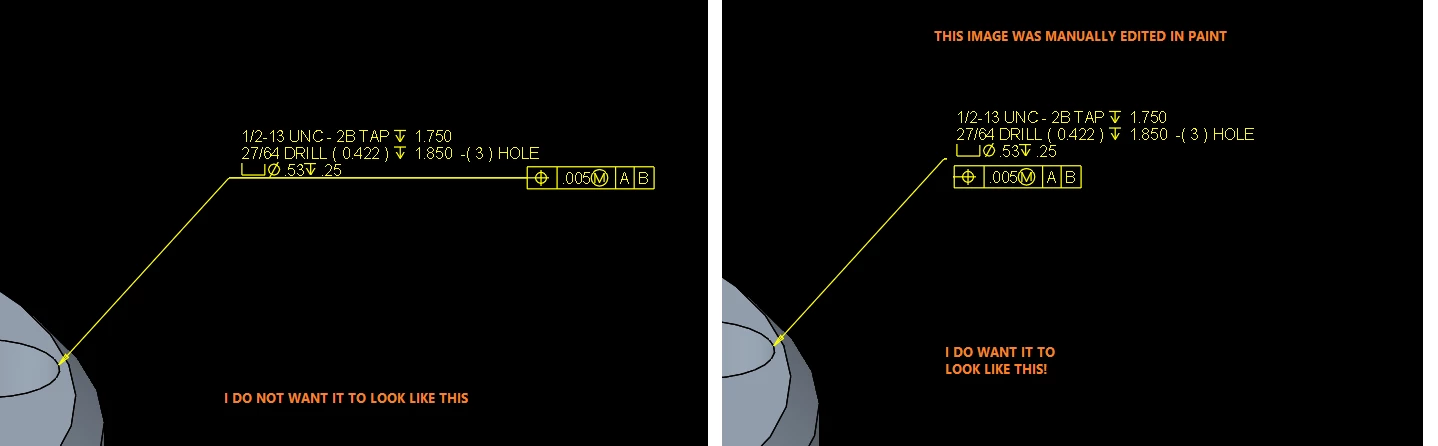

I do not want my true position tolerance showing up like this with the long leader line. I want it to show up with a short leader line that ends when the text starts. Does anyone know how to change this setting? See attached.



To create this GD&T I was in the .PRT file, annotate tab, and picked on "Geometric Tolerance"



Then clicked on the hole note and all of a sudden my nice looking short leader line turned in to a long leader line. It ALSO shows up this way on my drawing.

Thanks,
Dan



    5 replies

    J
    j_k8-Gravel
    8-Gravel
    October 18, 2022

    Anyone have an answer?

      StephenW
      StephenW23-Emerald III
      23-Emerald III
      October 18, 2022

      @j_k

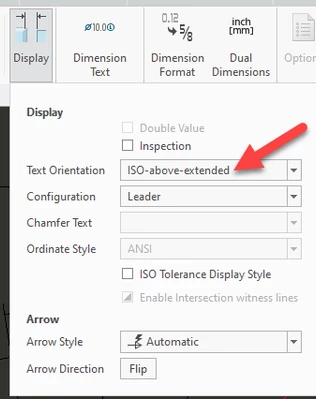

      Try changing the text orientation under display.




      T
      TomU23-Emerald IV
      23-Emerald IV
      October 18, 2022

      @StephenW,

      That only works for dimensions.  This is a standard hole note.

      Chris3
      Chris321-Topaz I
      21-Topaz I
      October 18, 2022

      If you create an idea for this I will vote for it. I played with Creo 10 (early build) briefly at the Orlando conference and I can report that it does the same thing there.
