Gear design and layers

Forum|Forum|9 years ago
November 17, 2016
4 replies
2870 views

I'm following this link How to model spur gear in CAD to create an involute gear profile but the base dia, pitch dia, outer dia and curve are all different layers so when I try and create the points needed for the next steps in creating the "tooth" the geometry is non selectable for the point to snap at the various intersections and points. So this is probably a layer question where I would like to edit the layers "beneath" the sketch or bring the geometry forward so I can edit within a sketch. I'm using creo 3.

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

Surfacing

D

dschenken

1-Visitor

Give us a hint - the steps are numbered - which step is sticking (I'm guessing 5 or 6)

Aside from that, I suspect that you have the selection filter set to something besides ALL, because otherwise you would be saying you could not see the curves to select them.

The Layer concept in Creo is that it is a list, usually to manage visibility, not as geometry overlays that bitmap graphics have, so there is no 'beneath' to them.

If you can see the geometry you can select it.

If you can't see the geometry, then you can change the visibility of the layers under the layers menu.

T

TomD.inPDX

17-Peridot

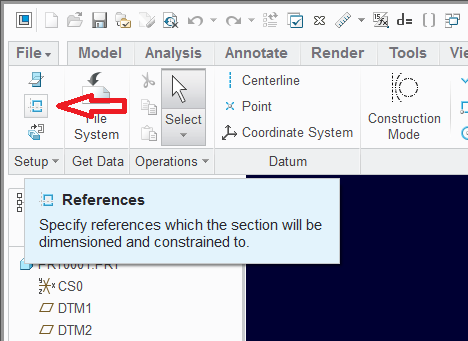

First define the references. After that, new features will snap to them within a sketch.

You can always make them members of the same layer, but be careful if some operations are done using layer filtering/selection.

T

tclark-4

Author

1-Visitor

Guys, thank you. Got the technique right hold down Alt key then select points and finally got the point tool to snap. My problem now is step 9. I cannot work out how to create the extrude. The strange dollar sign that would appear to lock the shape as one - any ideas??
