geometric tolerancing

  • August 15, 2013
  • 2 replies
  • 2061 views

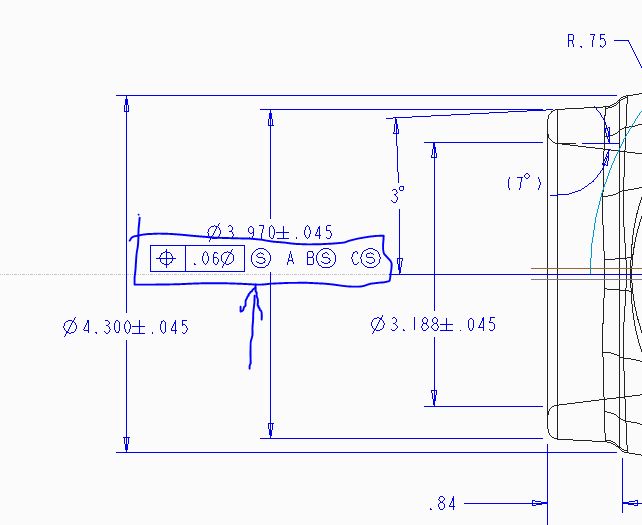

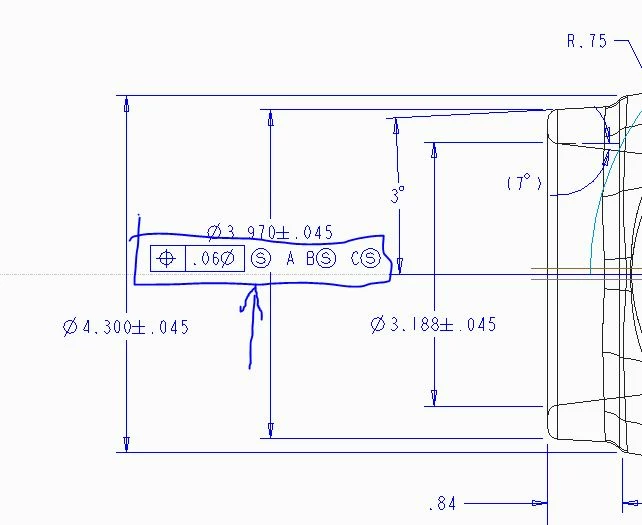

Hi, I have a question about how to make a feature control frame in the geometric tolerancing encompass all of the information I am trying to put in. I have a pic. Thank youcreo+question.JPG


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

2 replies

TomD.inPDX17-Peridot
17-Peridot
August 15, 2013

You have to put the "@[<stuff>@]" around each symbol and text string.

If this is a hybrid of a true GD&T feature with manually added control, you probably can't do that. If it is just added tot he dimension on the drawing, my above method applies.

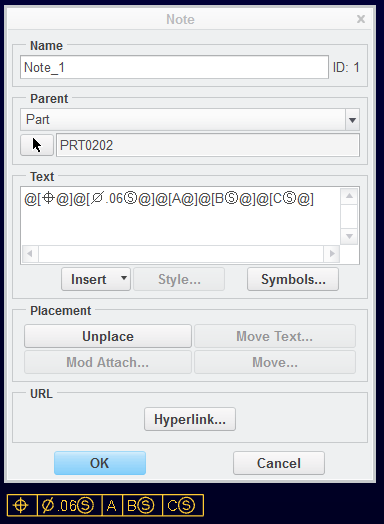

In other words, there is something wrong with your string. And i did have trouble making the string below. It doesn't seem to like adding the circle-S without adding {0:...} before it. Edit these out if they show up.

Welcome to the forum, Ronald.


Dcress023-Newcomer
3-Newcomer
August 16, 2013

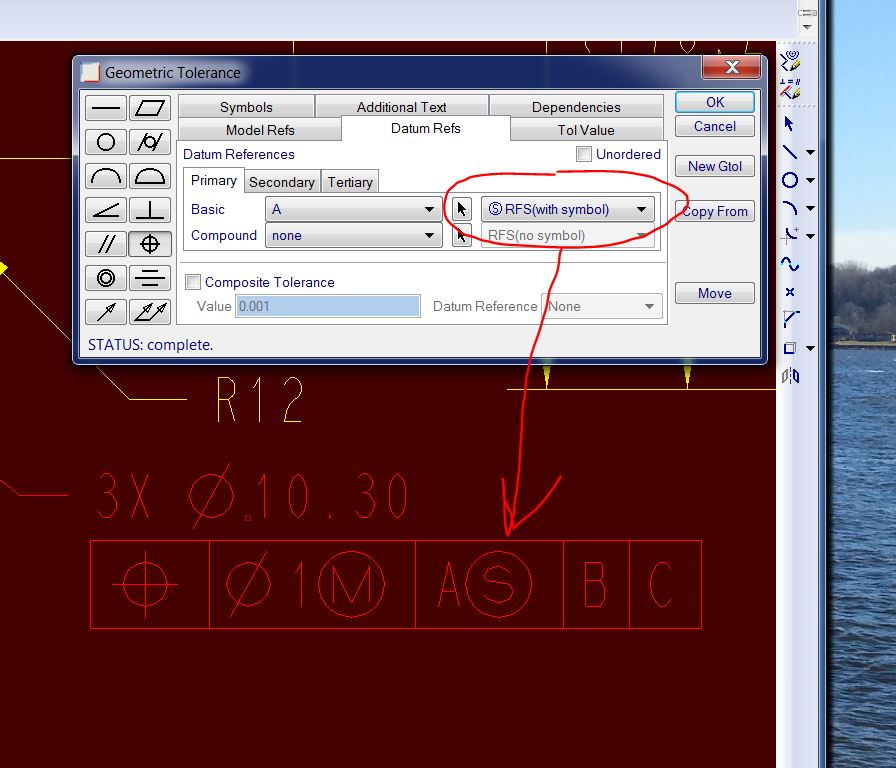

You can add all of that info to the feature control frame when you insert Geometric Tolerances.GDnT.JPG
