geometry pattern & feature pattern

Forum|Forum|12 years ago
January 28, 2014
2 replies
7045 views

Hi,

I've observed a difference in geometry pattern & feature pattern.

I've just migrated to Creo Prametric 2.0 from Pro E 3.0

While pattering a geometry - under the numbers box.

If I write the no. = 2, well it creates 2 geometry

If I write the no. =3, it creates 4 geometry

I want to understand the logic behind it.

Where as in the feature pattern-

If I write the no. = 2, well it creates 2 features

If I write the no. =3, it creates 3 features.

please Help!

Thanks!

This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

General

T

TomD.inPDX

17-Peridot

Mine is not behaving this way... Creo 2.0 M040

C

cprakash

Author

1-Visitor

I've also using M040

I've attached a ppt. shwoing the steps How it comes?

Please refer .

Thankyou for the reply.

1_Geometry_pattern.pptx

N

neomechanikos

1-Visitor

That definitely looks like a bug. I had the same results using your method in the powerpoint; I'm on Creo 2.0 M70. I tried the following similar methods:

Method 1: Geom pattern the solid surfaces = bug
Method 2: Copy of the surfaces then geom pattern the copy = OK

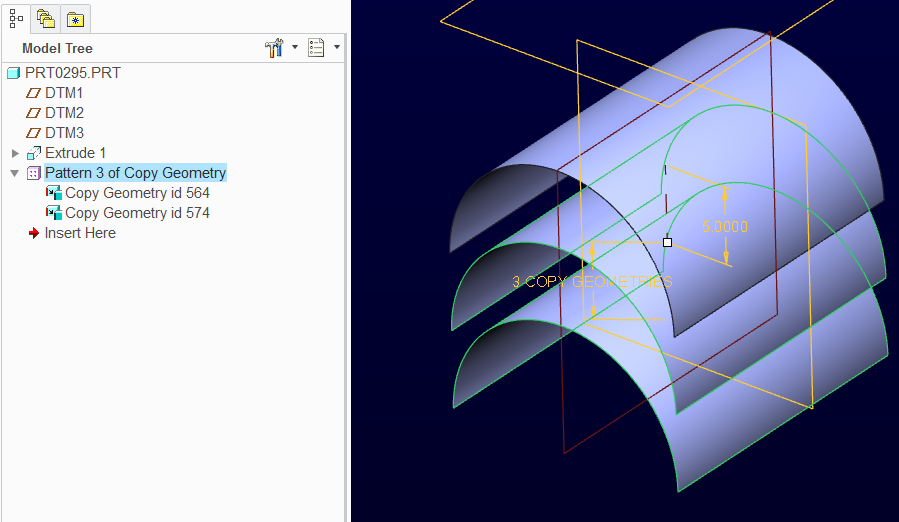

Method 3: Select one surface then geom pattern, then use the references dialog to select more surfaces = OK
Method 4: Use ALT+CTL and select all surfaces individually then geom pattern = OK
