GTOL Modifier Display Issues

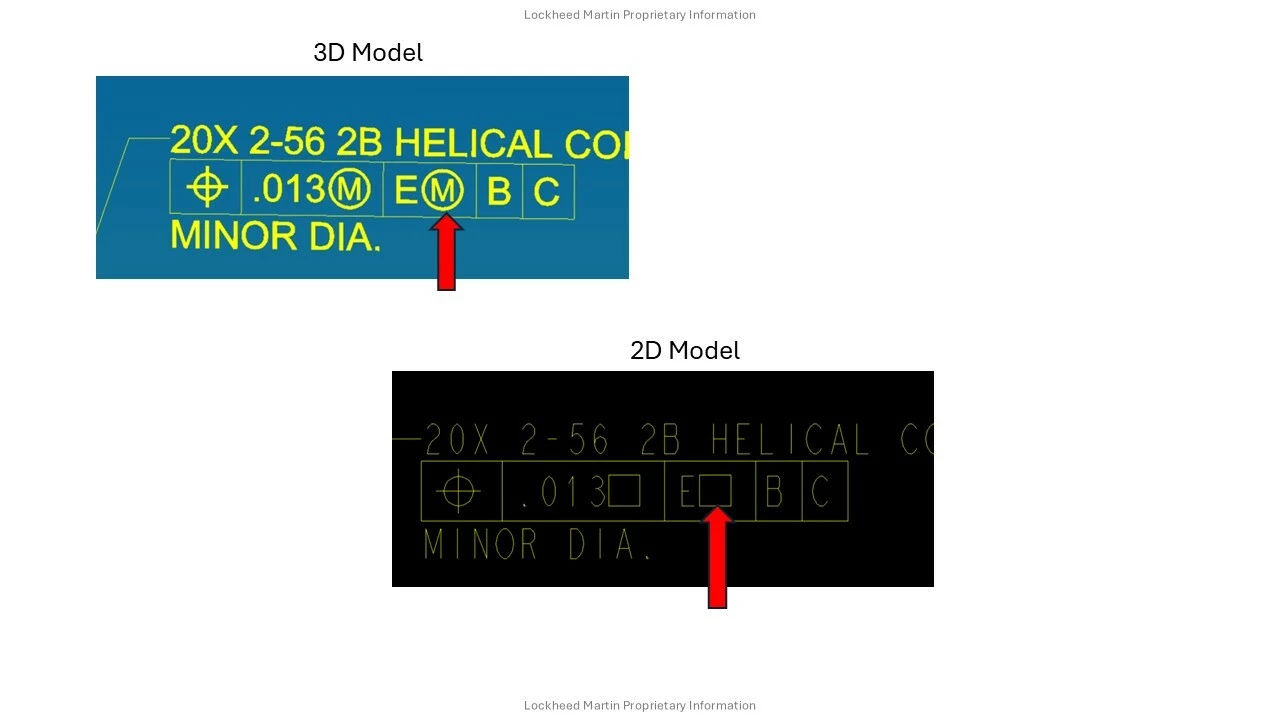

Hello, I’m currently using the GD&T Advisor under the Applications Tab within my 3D model. For unknown reasons, when I display the GTOLs in my drawing, the modifier symbols don’t show up. They just display as a blank box. Please see the attached picture. Has anyone ever ran into this before? Not sure if it’s a config setting or something else.

jchanceAnswer
12-Amethyst
Oct 17, 2026 2:28 PM UTC

You may need to change the font in your drawing.



Look up option symbol font in the drawing and make sure it matches the symbol font in your model

View in thread

4 replies

jchance12-AmethystAnswer
12-Amethyst
Oct 17, 2026 2:28 PM UTC

You may need to change the font in your drawing.



Look up option symbol font in the drawing and make sure it matches the symbol font in your model

Translate
Srinivasan-Iyer15-Moonstone
15-Moonstone
Oct 26, 2026 5:53 AM UTC

Check the value of the configuration option symbol_font both in config.pro and config.dtl. For me it is ISO. If your organization follows ASME, set it to ASME.

Translate
Knowing, what we know is just a fistful of Earth, brings in humility.
    Srinivasan-Iyer15-Moonstone
    15-Moonstone
    Oct 28, 2026 5:19 AM UTC

    Also have a look at the following link.

    Here is something from Google AI



    Translate
    Knowing, what we know is just a fistful of Earth, brings in humility.
    CR_988805612-AmethystAuthor
    12-Amethyst
    Nov 3, 2026 5:13 PM UTC

    Thank you everyone! I found a resolution. It was indeed a font issue as everyone had mentioned. It was a matter of using the correct one. 😊
