Helical Sweep Issue with Accuracy Problem

  • February 3, 2015
  • 5 replies
  • 1977 views

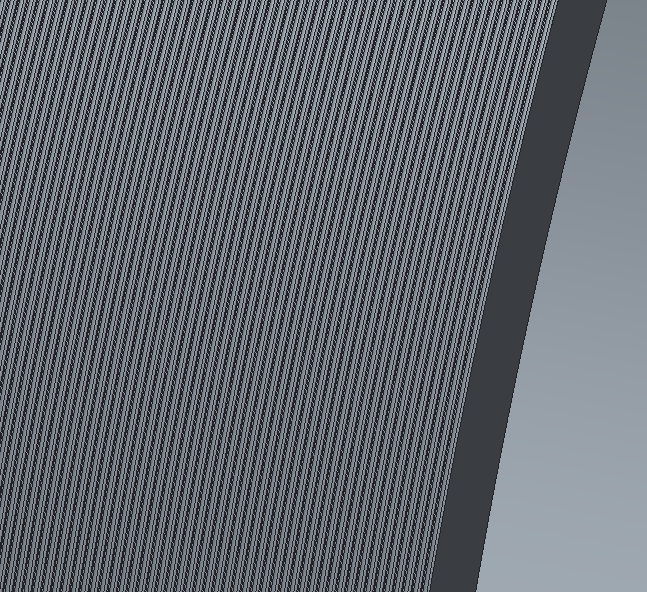

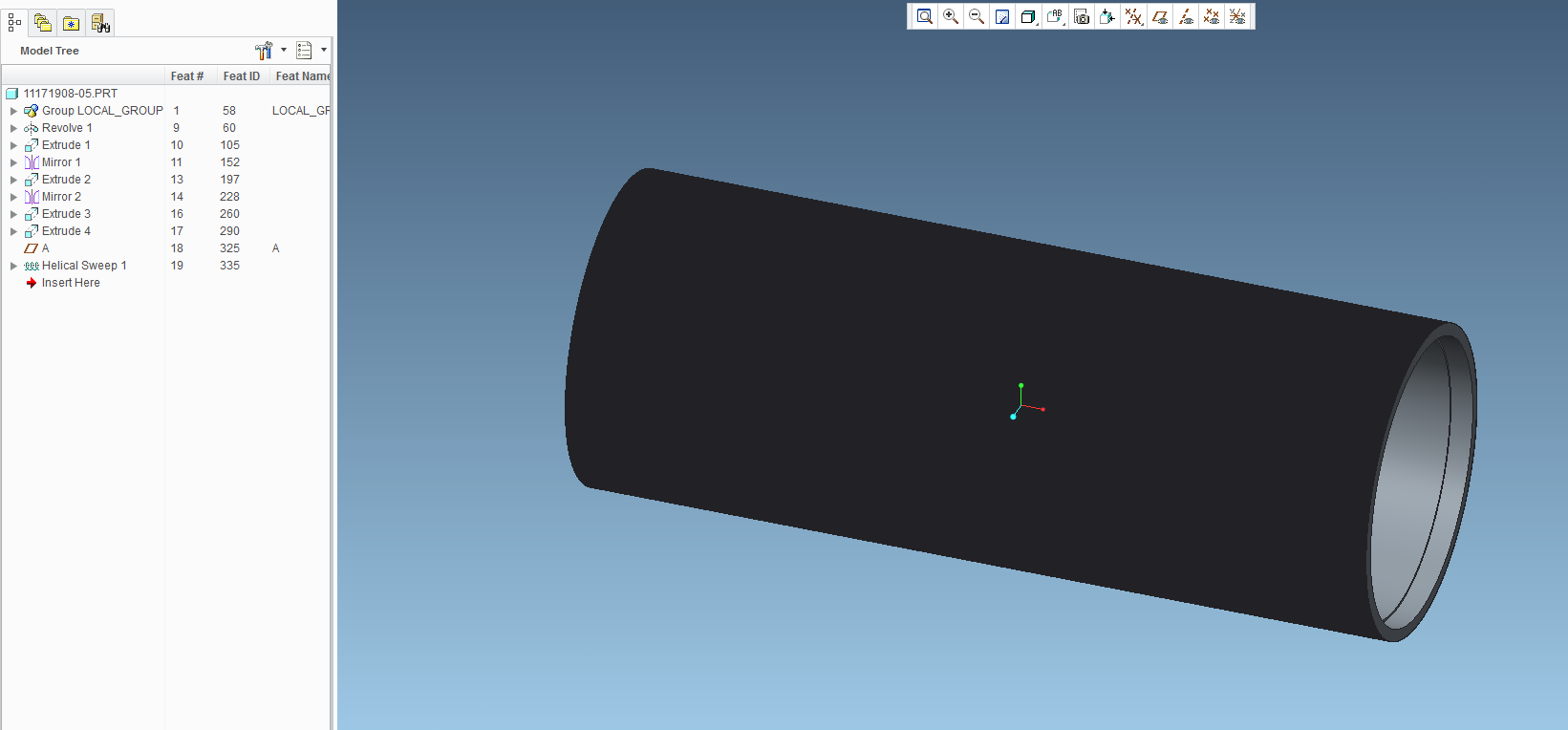

I am trying to create a groove in a roll that I am modeling and I am having issues where the groove is so small that the helical sweep wouldn't regenerate. So, I changed the accuracy of the part to absolute and .0001. The helical sweep will now regenerate, but it takes forever and I can't get the drawing for the assembly this part is in to open. Any suggestions?




This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
Best answer by mdebower

Three options spring to mind:

  1. Model the sweep for a small portion of the cylinder and make a note that it should extend the length, then create a detailed view of the that end of the cylinder showing the details of the groove.
  2. Fake the helical part. Just model it as a revolved cut. Should be much faster to regenerate. Then create the detailed view.
  3. Model the sweep as surfaces and then use them to make a solid cut. Should also regenerate faster. Still go with a high magnification detailed view to display the details of the groove.

I would not suggest trying to sketch it in the drawing, that is just asking for trouble.

-marc

CAD / PLM Systems Manager

5 replies

TomU23-Emerald IV
23-Emerald IV
February 3, 2015

Yeah, don't model the sweep.

Instead just create a sketch the shows the sweep profile and show this sketch on the drawing in a detail view.

fgallagher1-VisitorAuthor
1-Visitor
February 3, 2015

The problem is that the profile of the groove is so small that its not showing up in the drawing after I sketch it in the model. I might just have to sketch it in the drawing for it to work correctly.

TomU23-Emerald IV
23-Emerald IV
February 3, 2015

With a detailed view you can set the scale completely different from the other views and really "zoom in".

mdebower18-OpalAnswer
18-Opal
February 3, 2015

Three options spring to mind:

  1. Model the sweep for a small portion of the cylinder and make a note that it should extend the length, then create a detailed view of the that end of the cylinder showing the details of the groove.
  2. Fake the helical part. Just model it as a revolved cut. Should be much faster to regenerate. Then create the detailed view.
  3. Model the sweep as surfaces and then use them to make a solid cut. Should also regenerate faster. Still go with a high magnification detailed view to display the details of the groove.

I would not suggest trying to sketch it in the drawing, that is just asking for trouble.

-marc

CAD / PLM Systems Manager

fgallagher1-VisitorAuthor
1-Visitor
February 3, 2015

Thanks Marc, that worked well with faking the part with a revolved cut.
