Helical Sweep: Springs with variable pitch and Profile

  • August 6, 2014
  • 1 reply
  • 3861 views

Hi,



I have to design a spring with two different pitches & diameter along its length.

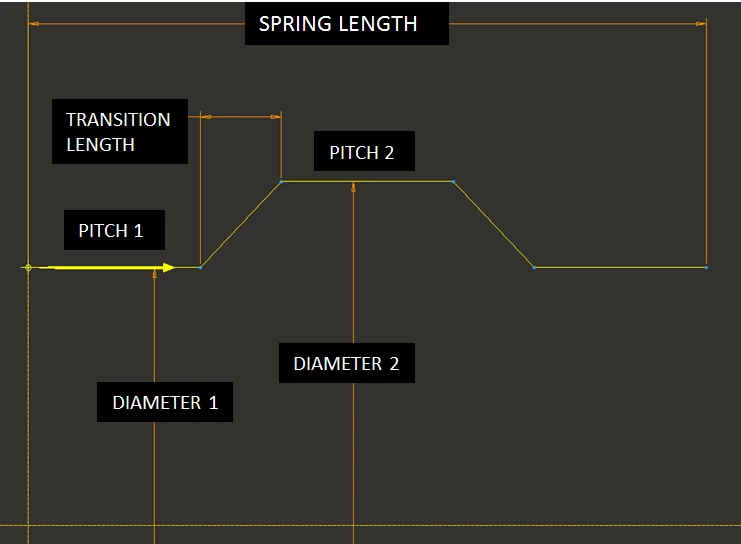

A sample is as shown below.




I wanted to know how is the transition from diamter 1 ( with pitch 1 ) to diameter 2 ( with pitch 2 ) handled generally?



I am currently keeping the transistion length less than the least pitch around it since if the transition length will be more than the pitch around it then an entire coil will come within the transition zone having neither of the pitches.



Am I looking at this problem correctly? or do I have faulty assumptions?


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

1 reply

T
TomD.inPDX17-Peridot
17-Peridot
August 6, 2014

You can change pitch in helical sweep, and the profile lets you change the diameter. I find the transition diffult to manage with the dialog, especually with a very course (low turn count) spring.

I do believe a better method is the evalgraph method where you can use a sweep with VSS to create a profile for a subsequent sweep to follow.

This is a great video on the subject:

    T
    TomD.inPDX17-Peridot
    17-Peridot
    August 6, 2014

    ...and welcome to the forum, Nashnir!
