Helical sweep thread problem

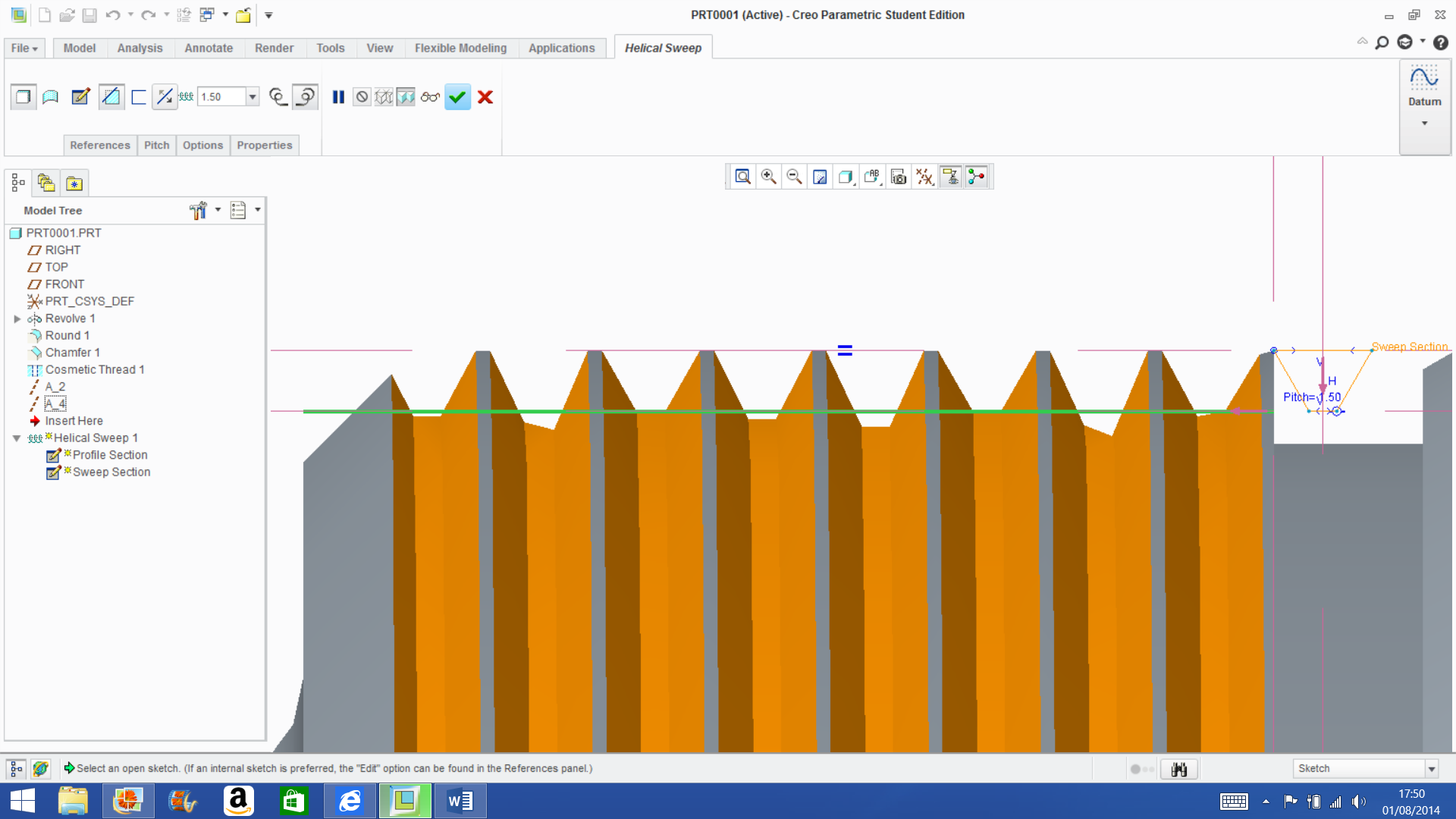

If any body could help me to find a reason for why the thread profile goes all skewed.


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.
dschenkenAnswer
2-Explorer
August 1, 2014

Make the part accuracy smaller - relative to the thread depth the pitch is almost non-existent, suggesting this is a small feature relative to the part.

View in thread

15 replies

TomD.inPDX17-Peridot
17-Peridot
August 1, 2014

Nice one

Try making it a surface rather than a remove material and see what the origin is following.

You can post the file in the advanced editor and we can have a look.

Translate
ptc-59113031-VisitorAuthor
1-Visitor
August 1, 2014

Hello thanks for your offer to help really appreciate it, as whats happened here has completely baffled me.

Translate
TomD.inPDX17-Peridot
17-Peridot
August 1, 2014

I hate that! All that trouble just to have it be an education version I cannot open these.

Translate
dschenken2-ExplorerAnswer
2-Explorer
August 1, 2014

Make the part accuracy smaller - relative to the thread depth the pitch is almost non-existent, suggesting this is a small feature relative to the part.

Translate
    TomD.inPDX17-Peridot
    17-Peridot
    August 1, 2014

    The pitch is 1.5 so it is not that small.

    There is something wrong with a reference.

    Never had a helical sweep do that to me.

    Translate
    dschenken2-Explorer
    2-Explorer
    August 1, 2014

    Pitch as a function of the thread diameter. The threads are almost vertical - 1:50 or less.

    This looks like the advance of a microscope thread or small ratio of advance to diameter.

    Translate
