I need help, i am having hard time to answer this question: PRINT OUT RELATION.
* Create a simple block with height of 100, width of 200, and depth of 100 (Which i was able to do)
Then add a hole of 10 diameter that is 50 from left side and 25 down from top ( Which i did)
Create a simple relation that will maintain this 1/4 height and 1/4 width distance from left corner no matter what the overall size (Which i did)

This is what i am having hard time:

Rename dimension symbols to logical names, and print out relation and PDF model

2D Drawing

StephenW

23-Emerald III

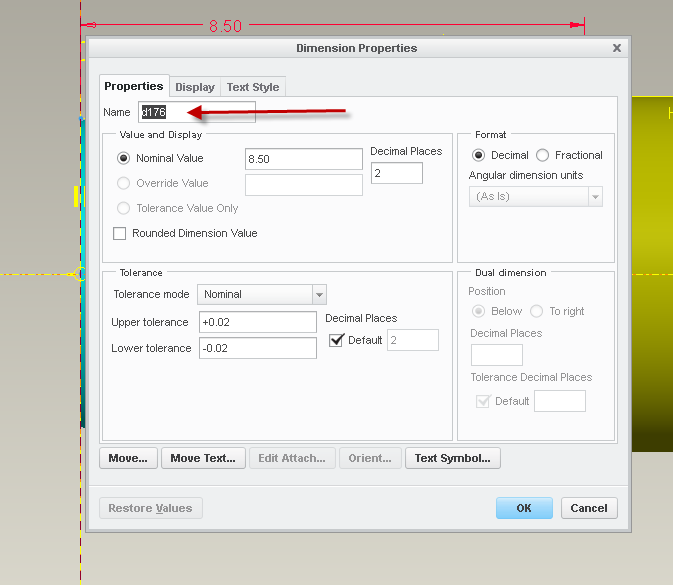

You can rename dimension symbols if you right click on the dimension and select properties.

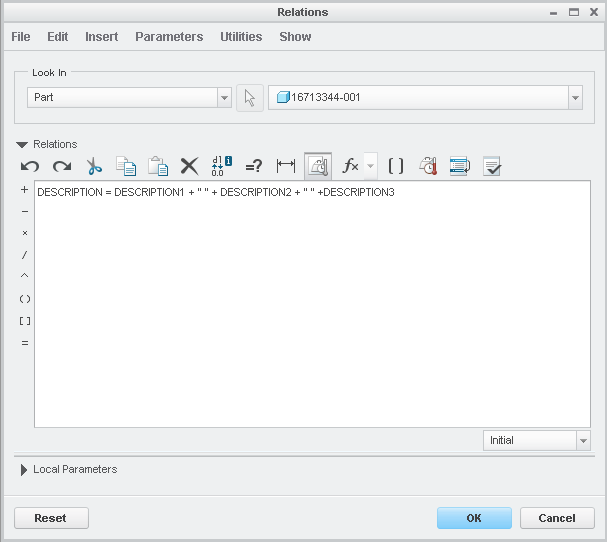

Not sure about printing relations other than using copy and paste in to a text editor or printing a screenshot of the relations editor.

M

MartinHanak

24-Ruby III

Hi,

see relations defined in attached part.

MH

1_simple_relations-prt-1.zip

J

jwandi

Author

1-Visitor

Hi Martin,

Thanks for your response, but i am using a student version which is not allowing me to open up the file you posted. Is there anything you can do about it?

Thanks
