Help on Modelling Fish Scale Array

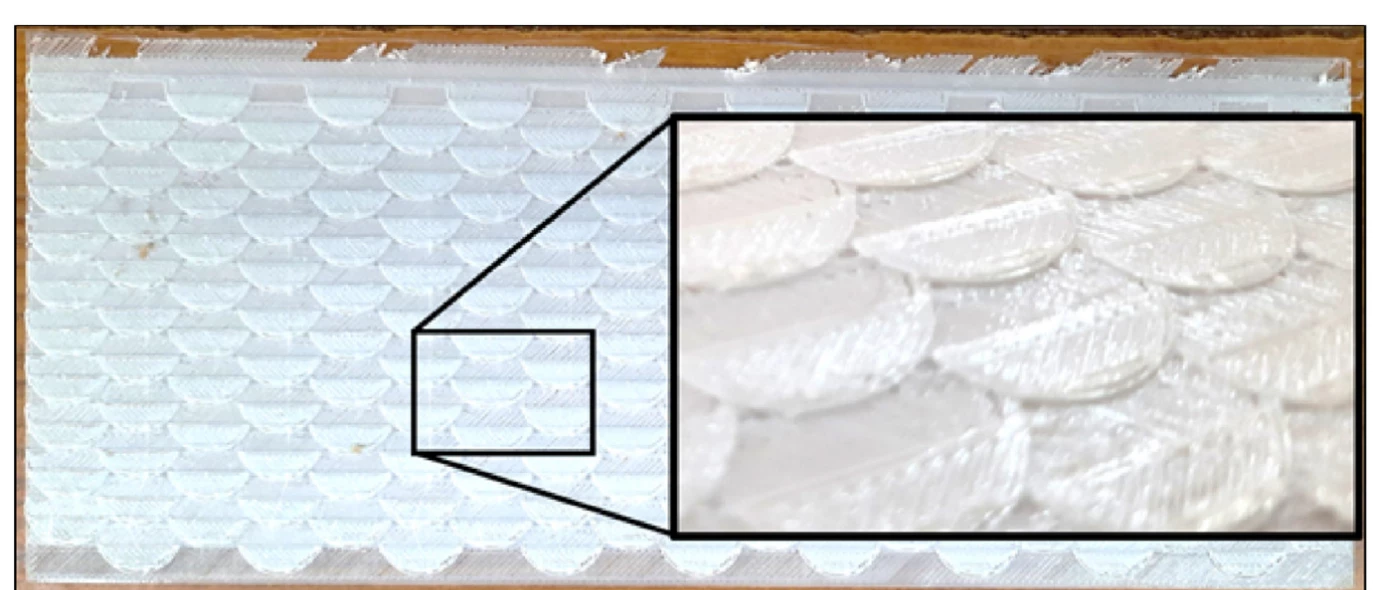

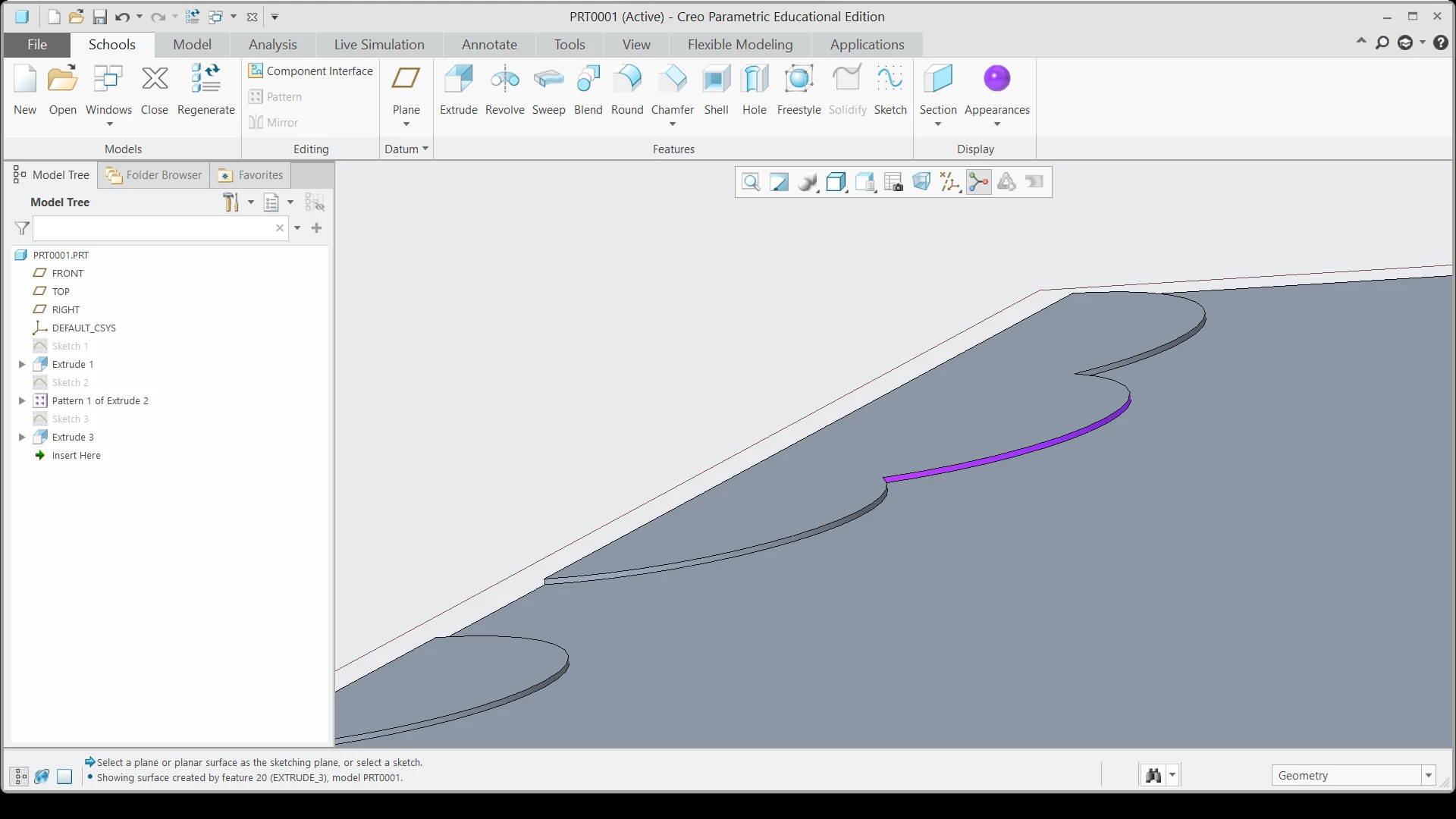

I am trying to model a fish scale array pattern as a film like structure. but unfortunately i cant able to create the overlapping surfaces. I figured that I need  some degree of tilt between the individual scales and the base.Attached pictures of what iam getting and what I need.  Help me to get the desired output.

MartinHanakAnswer
24-Ruby III
Jan 25, 2024 7:17 AM UTC

Hi,

create an assembly, add single fish scale into it and pattern it.

View in thread

4 replies

MartinHanak24-Ruby IIIAnswer
24-Ruby III
Jan 25, 2024 7:17 AM UTC

Hi,

create an assembly, add single fish scale into it and pattern it.

Translate
AH_1015533110-MarbleAuthor
10-Marble
Jan 26, 2024 1:48 AM UTC

Thank you for your help, I'll try it

Translate
tbraxton
tbraxton22-Sapphire II
22-Sapphire II
Jan 25, 2024 8:08 PM UTC

If you have access to the additive manufacturing extension it is possible to create a custom lattice that will greatly simplify modeling this type of pattern. I would do some investigation on that method if you have the extension available.

Translate
AH_1015533110-MarbleAuthor
10-Marble
Jan 26, 2024 1:49 AM UTC

Thank you for your help, I am using student version , so i think i can't able to avail that extension
