Help with modelling a spring with pigtail and square ends

  • February 15, 2017
  • 4 replies
  • 2504 views

Hi, I'm a student in Sweden that need help with modeling a helical spring with pigtail and square ends at the top and the bottom of the spring. I understand how to create a helical spring but I don't understand how I create square and pigtail ends. If someone could help me with this it would be great.



If someone is wondering what I mean by pigtail and square ends then here's some pictures of the different types:

Pigtail - Album on Imgur

http://imgur.com/7wPc6WS

4 replies

D
DenisJaunin15-Moonstone
15-Moonstone
February 15, 2017

Hello

May be an attached example.

Kind regards.

Denis

https://learningexchange.ptc.com/tutorial/17/analyzing-helical-sweep-profile-and-pitch-variations

kdirth
kdirth21-Topaz I
21-Topaz I
February 15, 2017

Use helical sweep with varying pitch and trim the ends with an extrude cut.


There is always more to learn.
D
DG_8950681-Visitor
1-Visitor
February 15, 2017

What Kevin said.

Plus keep in mind the helix will follow the sweep profile so a straight line will

create a simple spring, or you can go with something like this

T
tgriffin1-Visitor
1-Visitor
February 15, 2017

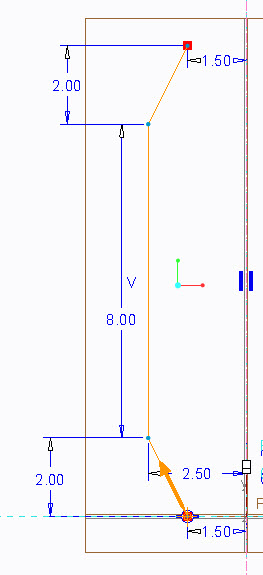

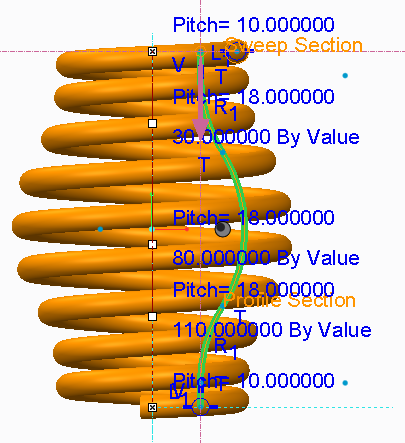

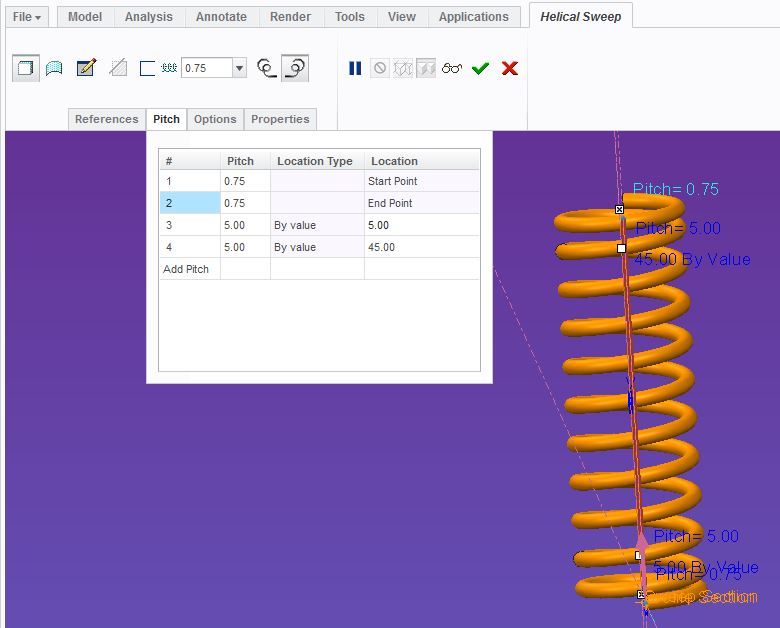

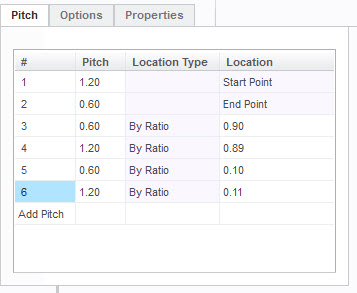

Attached is a helical sweep with the ends set like you want.  Below shows the profile sketch, this is how you get the diameter of the sweep to decrease at the ends.  I have also set pitch points within the sweep to make the coils closer together at the ends, and then after the sweep feature is completed, you can square the ends by creating planes and using solidify to remove material.
