Question

hide dimension using layer

  • November 17, 2016
  • 3 replies
  • 5063 views

Hello,

I have a dimension in one view which needs to be hidden. For this purpose, I am adding this dimension into layer and hide the layer to hide dimension. Due to other requirement, I must do this only i.e. add into layer and hide it or show it.

Can anyone help me to do show hide of dimension by hiding layer?

Thanks and Regards

Ketan


This thread is inactive and closed by the PTC Community Management Team. If you would like to provide a reply and re-open this thread, please notify the moderator and reference the thread. You may also use "Start a topic" button to ask a new question. Please be sure to include what version of the PTC product you are using so another community member knowledgeable about your version may be able to assist.

3 replies

P
psobejko1-Visitor
1-Visitor
November 17, 2016

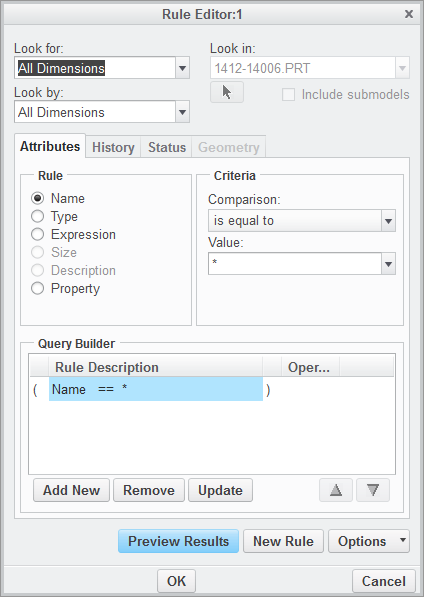

I'd first collect all model's dimensions as items of a layer by creating a layer "000_DIMENSIONS" that has this rule:

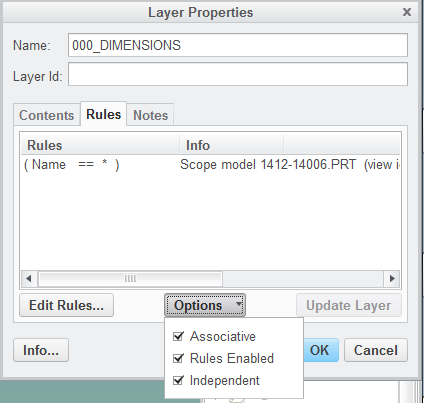

You'll probably have to use the "associative" option for the new rule to apply to already created dimensions:


From there, you can copy-and-paste items from the 000_DIMENSIONS layer into your custom layer that you'll hide in a particular view in your drawing...

K
Ketan_Lalcheta1-VisitorAuthor
1-Visitor
November 18, 2016

Query builder I am not able to get

And I am not able to paste item also from one layer to other layer.

Thanks and Regards

Ketan

P
psobejko1-Visitor
1-Visitor
November 18, 2016

Please post pictures, provide more detailed description of the steps you are trying to take, etc...

Without this, it is difficult to suggest a solution.  Please read all you can about layers in online help:

http://support.ptc.com/help/creo/creo_pma/usascii/#page/fundamentals%2Ffundamentals%2Ffund_six_sub%2FAbout_the_Layer_Model_Tree.html

http://support.ptc.com/help/creo/creo_pma/usascii/#page/fundamentals%2Ffundamentals%2Ffund_six_sub%2FTo_Copy_All_Items_on_a_Layer.html%23wwconnect_header

R
rmcboaty1-Visitor
1-Visitor
November 18, 2016

in a drawing? why don't you simple erase it?

R
rkassmeyer12-Amethyst
12-Amethyst
November 18, 2016

It really depends on how the dimension got to the drawing.  If it was created for the drawing in the drawing, why not just delete it.  If it is a shown model dimension, as previously suggested, just erase it.

The layers can be used but it can cause confusion for downstream users of the data.  If it is a model dimension and you erase it, it can be shown in a different view later.  If it is on a blanked layer, it is harder to find, unblank and then move to a different view.

K
Kevin1-Visitor
1-Visitor
November 18, 2016

There is an instance were you have to be careful with erased dimensions and that is when you delete a view that has erased dimensions. If those dimensions are not deleted first you won't be able to show the dimensions, they don't show in the shown annotation dialog. I'm not aware of anything where this has been addressed by PTC.

R
rkassmeyer12-Amethyst
12-Amethyst
November 18, 2016

You are correct, I had forgotten that PTC added the capability to "delete" shown dimensions.

My earlier statements should be revised to:

It really depends on how the dimension got to the drawing.  If it was created for the drawing in the drawing, why not just delete it.  If it is a shown model dimension, as previously suggested, just delete it (which stops showing it in the view).

The layers can be used, but it can cause confusion for downstream users of the data.  If it is a model dimension and you delete it, it can be shown in a different view later.  If it is on a blanked layer, it is harder to find, unblank and then move to a different view.
