Hide reference plan in assembly

Forum|Forum|3 years ago
October 7, 2022
4 replies
4096 views

Hi,

I had a problem with some assembly that were showing planes even when I had my "plans's display" off. I realise that the planes that were still showing up had a special property checked, as you can see below :

(obtained with a right clic on the plane / properties)

Is it possible to hide those type of planes too when plans's display is off (at least in assembly) ?

For information, when I change the display back to the normal property of the plane, the plane hides like it should but it would be great if I didn't have to.

Assembly Design

StephenW

23-Emerald III

It will depend on what version of Creo you are using. PTC has changed the way you can hide these a couple of times.

Pre-creo 4, you could add them to a layer and turn them off

Around Creo 4-5 you had to set up display states.

After that, someone else will have to help, I'm not there yet.

S

SR_CAD

Author

13-Aquamarine

Hi, I'm using Creo Parametric 8.0.4.0.

T

TR_10449171

1-Visitor

Alternatively, you can right click on the part and choose show/hide reference planes. The can be done in the assembly. If you just click on a blank area in the screen and chose show reference planes, it will do so far all parts on the screen which is probably what you are referring to.

S

SR_CAD

Author

13-Aquamarine

Hi,

I can't find "show/hide reference planes" when I right click on the part or in a blank area.

Is this available on 8.0.4.0 ? If so, could I have more details. Thanks.

kdirth

21-Topaz I

Try config auto_erase_set_datum_planes yes

There is always more to learn.

S

SR_CAD

Author

13-Aquamarine

Hi according to Creo's help, this option is supposed to be for .drw files so it's not working for my .asm files. Even so I tried in a .drw file and it didn't erase the planes.

StephenW

23-Emerald III

@SR_CAD

That option only work when you create a new view. It will not "clean up" an existing view.

I'm not sure exactly what you are referring to either. Do you have GD&T datums showing? Maybe a screenshot of what the problem is would help.

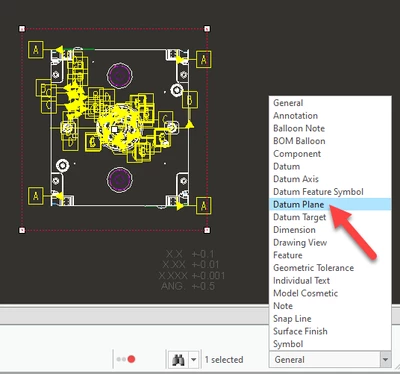

If you have GD&T datums showing on your drawing, I usually just set the selection filter in the bottom right hand corner to datum plane and then window select across the view(s). Then right mouse button erase or delete (whichever is available)
