HLR view, save line drawing as PDF: miserable result, most lines missing

  • December 11, 2019
  • 1 reply
  • 3077 views

Hi Forum,



I have an *.asm assembly in Creo View 6.0, displayed in HLR mode as black and white line drawing.

When exporting that view to PDF ("Save Current View as 2D Vector File" -> PDF), most of the lines are missing in the resulting PDF.



If I export a single *.prt part from that *.asm assembly to PDF the same way, all lines are shown perfectly.



Thanks for help on how to export also the *.asm assembly with all lines visible in the resulting PDF.

1 reply

M
MartinHanak24-Ruby III
24-Ruby III
December 11, 2019

Hi,

please report the problem to PTC Support.

    V
    VeqTor1-VisitorAuthor
    1-Visitor
    December 11, 2019

    SOLVED:



    Don't use *.asm/*.prt file folders for viewing in Creo View -- PDF vector export will not work properly.



    Instead, use *.pvz files -- PDF vector export will turn out perfect.



    [@unknown -- you could of course still work on this and occasionally fix that broken PDF vector export as far as  *.asm/*.prt file folders are concerned]

    V
    VeqTor1-VisitorAuthor
    1-Visitor
    December 10, 2022

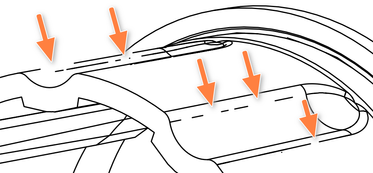

    I stand corrected. Regardless of the format in which a part or assembly is loaded into Creo View, the problem with missing lines isn't fixed when exporting to PDF.
